The voids.io sub-package handles serialization and import/export for canonical
networks, PoreSpy interoperability, OpenPNM interoperability, and image-volume
cases.

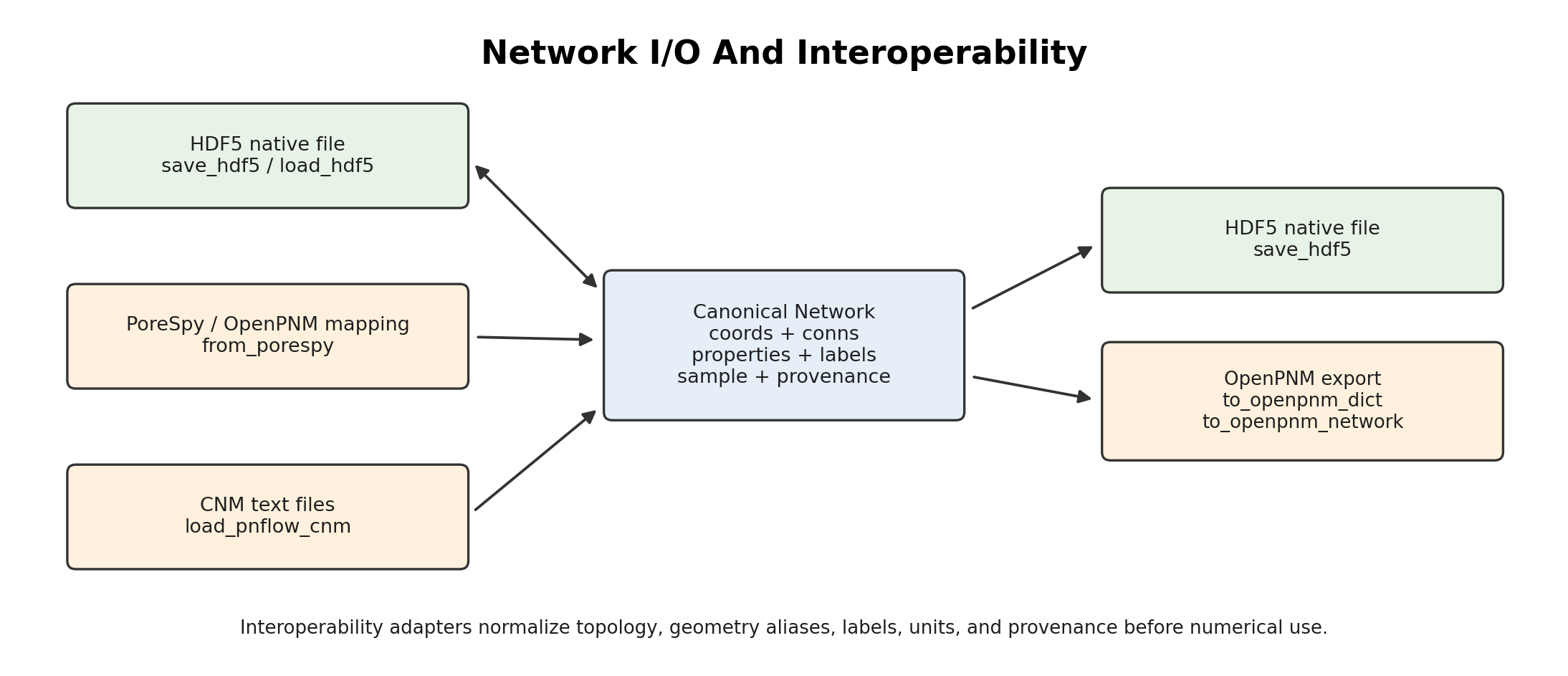

Network I/O And Interoperability
voids supports network import/export through the canonical Network data
model. The native disk format is an HDF5 schema written by save_hdf5 and read
by load_hdf5. External network interoperability is handled by adapters that
normalize topology, geometry aliases, labels, sample metadata, and provenance
before numerical use.
Supported Network Paths
| Path |
Direction |
Primary API |
Notes |
| Canonical HDF5 |
read/write |
save_hdf5, load_hdf5 |
Native voids round trip for Network, SampleGeometry, Provenance, labels, properties, and JSON-compatible extra metadata |
| PoreSpy/OpenPNM-style dictionary |
import |
from_porespy |
Imports flat mappings with keys such as pore.coords and throat.conns; common geometry aliases are normalized |
| PoreSpy voxel-unit geometry |
preprocessing |
scale_porespy_geometry |
Converts common length, area, volume, and perimeter fields from voxel units to physical units for isotropic voxels |
| Cartesian boundary labels |
preprocessing |
ensure_cartesian_boundary_labels |
Infers labels such as pore.inlet_xmin and pore.outlet_xmax from pore coordinates |
| OpenPNM-style dictionary |
export |
to_openpnm_dict |
Exports a Network to a flat dictionary suitable for OpenPNM/PoreSpy-style workflows |
| OpenPNM network object |
export |
to_openpnm_network |
Requires optional openpnm; constructor handling is version tolerant |
| Imperial CNM text files |
import |
load_pnflow_cnm |
Imports *_node1.dat, *_node2.dat, *_link1.dat, and *_link2.dat files into a canonical Network |
Canonical HDF5 Round Trip
Use HDF5 when the goal is a native round trip for later voids
calculations:
from voids.io import load_hdf5, save_hdf5
save_hdf5(net, "network.h5")
reloaded = load_hdf5("network.h5")
The HDF5 layout stores the schema version, sample geometry, provenance, pore and
throat arrays, boolean labels, and JSON-compatible net.extra metadata.
Importing PoreSpy/OpenPNM-Style Networks
PoreSpy and OpenPNM commonly represent networks as flat mappings. The minimal
required topology keys are pore.coords and throat.conns:
from voids.io import (
ensure_cartesian_boundary_labels,
from_porespy,
scale_porespy_geometry,
)
scaled = scale_porespy_geometry(network_dict, voxel_size=2.5e-6)
labeled = ensure_cartesian_boundary_labels(scaled, axes=("x",))
net = from_porespy(labeled, sample=sample, provenance=provenance)
The importer maps common aliases such as throat.cross_sectional_area,
throat.total_length, pore.inscribed_diameter, and
throat.conduit_lengths.* to canonical voids fields. Two-dimensional
coordinate arrays are embedded in 3-D as (x, y, 0).
Exporting To OpenPNM-Style Objects
Use to_openpnm_dict when a flat mapping is enough:
from voids.io import to_openpnm_dict
op_dict = to_openpnm_dict(net)
Use to_openpnm_network when an actual OpenPNM object is needed:
from voids.io import to_openpnm_network
op_net = to_openpnm_network(net)
to_openpnm_network depends on the optional openpnm package. If OpenPNM is
not installed, use the dictionary export or install the optional stack required
for the target workflow.
Importing CNM Text Networks
load_pnflow_cnm imports the four-file CNM text layout used by
pnextract/pnflow workflows:
from voids.io import load_pnflow_cnm
imported = load_pnflow_cnm("case_dir/case_name")
net = imported.net
The prefix should omit the _node1.dat, _node2.dat, _link1.dat, and
_link2.dat suffixes. The importer attaches sample lengths, pore/throat
geometry, boundary labels, and import metadata. It currently supports the
x-directed boundary convention used by the committed CNM benchmark files.
voids does not currently provide a general CNM exporter. For external network
export, use either canonical HDF5 or the OpenPNM-style dictionary/object
adapters, depending on the downstream solver.
Network API Reference
HDF5
Serialize a network to the project HDF5 interchange format.
Parameters:
| Name |
Type |
Description |
Default |
net
|
Network
|
|
required
|
path
|
str | Path
|
Destination file path. Parent directories must already exist.
|
required
|
Notes
The file layout is intentionally explicit:
/meta stores schema and provenance metadata./sample stores the sample geometry payload./network/pore and /network/throat store arrays./labels stores boolean pore and throat labels as uint8 datasets./ attribute extra stores JSON-compatible auxiliary metadata.
Source code in src/voids/io/hdf5.py
| def save_hdf5(net: Network, path: str | Path) -> None:
"""Serialize a network to the project HDF5 interchange format.
Parameters
----------
net :
Network to store.
path :
Destination file path. Parent directories must already exist.
Notes
-----
The file layout is intentionally explicit:
- ``/meta`` stores schema and provenance metadata.
- ``/sample`` stores the sample geometry payload.
- ``/network/pore`` and ``/network/throat`` store arrays.
- ``/labels`` stores boolean pore and throat labels as ``uint8`` datasets.
- ``/`` attribute ``extra`` stores JSON-compatible auxiliary metadata.
"""
path = Path(path)
with h5py.File(path, "w") as f:
meta = f.create_group("meta")
meta.create_dataset("schema_version", data=np.bytes_(net.schema_version))
_write_json_attr(meta, "provenance", net.provenance.to_metadata())
sample = f.create_group("sample")
_write_json_attr(sample, "payload", net.sample.to_metadata())
ng = f.create_group("network")
pg = ng.create_group("pore")
tg = ng.create_group("throat")
pg.create_dataset("coords", data=net.pore_coords)
tg.create_dataset("conns", data=net.throat_conns)
for k, v in net.pore.items():
pg.create_dataset(k, data=v)
for k, v in net.throat.items():
tg.create_dataset(k, data=v)
labels = f.create_group("labels")
lpg = labels.create_group("pore")
ltg = labels.create_group("throat")
for k, v in net.pore_labels.items():
lpg.create_dataset(k, data=v.astype(np.uint8))
for k, v in net.throat_labels.items():
ltg.create_dataset(k, data=v.astype(np.uint8))
_write_json_attr(f, "extra", net.extra)
|
Load a network from the project HDF5 interchange format.
Parameters:
| Name |
Type |
Description |
Default |
path
|
str | Path
|
Path to an HDF5 file produced by :func:save_hdf5.
|
required
|
Returns:
| Type |
Description |
Network
|
Reconstructed network object.
|
Notes
Boolean labels are stored on disk as uint8 arrays for portability and are
converted back to bool arrays during import.
Source code in src/voids/io/hdf5.py
| def load_hdf5(path: str | Path) -> Network:
"""Load a network from the project HDF5 interchange format.
Parameters
----------
path :
Path to an HDF5 file produced by :func:`save_hdf5`.
Returns
-------
Network
Reconstructed network object.
Notes
-----
Boolean labels are stored on disk as ``uint8`` arrays for portability and are
converted back to ``bool`` arrays during import.
"""
path = Path(path)
with h5py.File(path, "r") as f:
schema_version = f["meta"]["schema_version"][()].decode("utf-8")
prov = Provenance.from_metadata(_read_json_attr(f["meta"], "provenance", {}))
sample = SampleGeometry.from_metadata(_read_json_attr(f["sample"], "payload", {}))
pore_coords = f["network"]["pore"]["coords"][()]
throat_conns = f["network"]["throat"]["conns"][()]
pore = {k: ds[()] for k, ds in f["network"]["pore"].items() if k != "coords"}
throat = {k: ds[()] for k, ds in f["network"]["throat"].items() if k != "conns"}
pore_labels = (
{k: ds[()].astype(bool) for k, ds in f["labels"]["pore"].items()}
if "labels" in f
else {}
)
throat_labels = (
{k: ds[()].astype(bool) for k, ds in f["labels"]["throat"].items()}
if "labels" in f
else {}
)
extra = _read_json_attr(f, "extra", {})
return Network(
throat_conns=throat_conns,
pore_coords=pore_coords,
sample=sample,
provenance=prov,
schema_version=schema_version,
pore=pore,
throat=throat,
pore_labels=pore_labels,
throat_labels=throat_labels,
extra=extra,
)
|
PoreSpy Import
scale_porespy_geometry(network_dict, *, voxel_size)
Scale common PoreSpy geometry fields from voxel units to physical units.
Parameters:
| Name |
Type |
Description |
Default |
network_dict
|
Mapping[str, object]
|
PoreSpy/OpenPNM-style mapping containing keys such as pore.coords,
throat.cross_sectional_area and pore.volume.
|
required
|
voxel_size
|
float
|
Edge length of one voxel in physical units.
|
required
|
Returns:
| Type |
Description |
dict of str to object
|
New mapping with common geometric fields rescaled.
|
Raises:
| Type |
Description |
ValueError
|
If voxel_size is not positive.
|
Notes
This helper assumes isotropic voxels. The conversion factors are:
- lengths:
L_phys = L_vox * voxel_size
- areas:
A_phys = A_vox * voxel_size**2
- volumes:
V_phys = V_vox * voxel_size**3
- perimeters:
P_phys = P_vox * voxel_size
When throat.volume is absent but throat.cross_sectional_area and
throat.total_length are available, a simple conduit approximation is used:
throat.volume = throat.cross_sectional_area * throat.total_length
This is convenient for manufactured examples and notebook workflows, but it is
still a geometric approximation rather than an exact segmented volume.
Source code in src/voids/io/porespy.py
| def scale_porespy_geometry(
network_dict: Mapping[str, object], *, voxel_size: float
) -> dict[str, object]:
"""Scale common PoreSpy geometry fields from voxel units to physical units.
Parameters
----------
network_dict :
PoreSpy/OpenPNM-style mapping containing keys such as ``pore.coords``,
``throat.cross_sectional_area`` and ``pore.volume``.
voxel_size :
Edge length of one voxel in physical units.
Returns
-------
dict of str to object
New mapping with common geometric fields rescaled.
Raises
------
ValueError
If ``voxel_size`` is not positive.
Notes
-----
This helper assumes isotropic voxels. The conversion factors are:
- lengths: ``L_phys = L_vox * voxel_size``
- areas: ``A_phys = A_vox * voxel_size**2``
- volumes: ``V_phys = V_vox * voxel_size**3``
- perimeters: ``P_phys = P_vox * voxel_size``
When ``throat.volume`` is absent but ``throat.cross_sectional_area`` and
``throat.total_length`` are available, a simple conduit approximation is used:
``throat.volume = throat.cross_sectional_area * throat.total_length``
This is convenient for manufactured examples and notebook workflows, but it is
still a geometric approximation rather than an exact segmented volume.
"""
L = float(voxel_size)
if L <= 0:
raise ValueError("voxel_size must be positive")
scaled = dict(network_dict)
for key, value in list(scaled.items()):
arr = np.asarray(value)
if not np.issubdtype(arr.dtype, np.number):
continue
if key in _AREA_KEYS:
scaled[key] = arr.astype(float) * L**2
elif key in _LENGTH_KEYS:
scaled[key] = arr.astype(float) * L
elif key in _VOLUME_KEYS:
scaled[key] = arr.astype(float) * L**3
elif key in _PERIMETER_KEYS:
scaled[key] = arr.astype(float) * L
if "throat.volume" not in scaled and all(
key in scaled for key in ("throat.cross_sectional_area", "throat.total_length")
):
scaled["throat.volume"] = np.asarray(
scaled["throat.cross_sectional_area"], dtype=float
) * np.asarray(scaled["throat.total_length"], dtype=float)
if "pore.volume" not in scaled and "pore.region_volume" in scaled:
scaled["pore.volume"] = np.asarray(scaled["pore.region_volume"], dtype=float)
return scaled
|
ensure_cartesian_boundary_labels(
network_dict, *, axes=None, tol_fraction=0.05
)
Infer Cartesian inlet and outlet pore labels from coordinates.
Parameters:
| Name |
Type |
Description |
Default |
network_dict
|
Mapping[str, object]
|
Mapping containing at least pore.coords.
|
required
|
axes
|
tuple[str, ...] | None
|
Axes to label. If omitted, all axes present in the coordinate array are used.
|
None
|
tol_fraction
|
float
|
Fraction of the domain span used as a geometric tolerance near each boundary.
|
0.05
|
Returns:
| Type |
Description |
dict of str to object
|
Updated mapping with labels such as pore.inlet_xmin and pore.outlet_xmax.
|
Raises:
| Type |
Description |
ValueError
|
If the coordinate array has invalid shape, if tol_fraction is negative,
or if an invalid axis name is requested.
|
Notes
For each active axis, the helper marks pores satisfying
x <= x_min + tol as inlet poresx >= x_max - tol as outlet pores
where tol = tol_fraction * max(x_max - x_min, 1e-12).
Source code in src/voids/io/porespy.py
| def ensure_cartesian_boundary_labels(
network_dict: Mapping[str, object],
*,
axes: tuple[str, ...] | None = None,
tol_fraction: float = 0.05,
) -> dict[str, object]:
"""Infer Cartesian inlet and outlet pore labels from coordinates.
Parameters
----------
network_dict :
Mapping containing at least ``pore.coords``.
axes :
Axes to label. If omitted, all axes present in the coordinate array are used.
tol_fraction :
Fraction of the domain span used as a geometric tolerance near each boundary.
Returns
-------
dict of str to object
Updated mapping with labels such as ``pore.inlet_xmin`` and ``pore.outlet_xmax``.
Raises
------
ValueError
If the coordinate array has invalid shape, if ``tol_fraction`` is negative,
or if an invalid axis name is requested.
Notes
-----
For each active axis, the helper marks pores satisfying
- ``x <= x_min + tol`` as inlet pores
- ``x >= x_max - tol`` as outlet pores
where ``tol = tol_fraction * max(x_max - x_min, 1e-12)``.
"""
coords = np.asarray(network_dict["pore.coords"], dtype=float)
if coords.ndim != 2 or coords.shape[1] not in {2, 3}:
raise ValueError("pore.coords must have shape (Np, 2) or (Np, 3)")
if tol_fraction < 0:
raise ValueError("tol_fraction must be nonnegative")
ndim = coords.shape[1]
active_axes = axes if axes is not None else tuple(("x", "y", "z")[:ndim])
updated = dict(network_dict)
boundary = np.asarray(
updated.get("pore.boundary", np.zeros(coords.shape[0], dtype=bool)), dtype=bool
).copy()
for axis in active_axes:
if axis not in _AXIS_INDEX:
raise ValueError("axes entries must be drawn from {'x', 'y', 'z'}")
axis_index = _AXIS_INDEX[axis]
if axis_index >= ndim:
raise ValueError(
f"axis '{axis}' is not available in pore.coords with shape {coords.shape}"
)
values = coords[:, axis_index]
# Use argmin/argmax instead of ndarray.min/max for compatibility with
# environments where numpy reduction defaults are monkeypatched.
lo = float(values[np.argmin(values)])
hi = float(values[np.argmax(values)])
tol = tol_fraction * max(hi - lo, 1e-12)
inlet_key = f"pore.inlet_{axis}min"
outlet_key = f"pore.outlet_{axis}max"
updated.setdefault(inlet_key, values <= lo + tol)
updated.setdefault(outlet_key, values >= hi - tol)
boundary |= np.asarray(updated[inlet_key], dtype=bool) | np.asarray(
updated[outlet_key], dtype=bool
)
updated["pore.boundary"] = boundary
return updated
|
from_porespy(
network_dict,
*,
sample=None,
provenance=None,
strict=True,
geometry_repairs=None,
repair_seed=0,
)
Build a :class:Network from a PoreSpy/OpenPNM-style mapping.
Parameters:
| Name |
Type |
Description |
Default |
network_dict
|
Mapping[str, object]
|
Mapping containing PoreSpy/OpenPNM keys such as pore.coords and
throat.conns.
|
required
|
sample
|
SampleGeometry | None
|
Sample geometry metadata attached to the resulting network. If omitted,
a default empty :class:SampleGeometry is used.
|
None
|
provenance
|
Provenance | None
|
Provenance metadata. If omitted, a default record with
source_kind="porespy" is created.
|
None
|
strict
|
bool
|
If True, missing topology keys immediately raise an error.
|
True
|
geometry_repairs
|
str | None
|
Optional extraction-style preprocessing mode. Set to
"imperial_export" to apply the Imperial College export heuristics
for throat shape-factor repair and pore shape-factor reconstruction.
The default None preserves the imported geometry as-is apart from
basic alias normalization. The legacy name "pnextract" is still
accepted as a deprecated alias for backward compatibility.
|
None
|
repair_seed
|
int | None
|
Seed for any stochastic repair branch. Only used when
geometry_repairs="imperial_export".
|
0
|
Returns:
| Type |
Description |
Network
|
Imported network in the canonical voids representation.
|
Raises:
| Type |
Description |
KeyError
|
If the required topology keys are missing.
|
Notes
The importer performs several normalizations:
- PoreSpy/OpenPNM aliases are mapped to canonical
voids names.
- Two-dimensional coordinates are embedded into 3D as
(x, y, 0).
- Basic missing geometry is derived when possible.
- Common boundary aliases such as
left and right are mirrored to
inlet_xmin and outlet_xmax.
OpenPNM-style arrays that are not part of the formal schema, such as
throat.hydraulic_size_factors, are preserved in net.extra so that
information is not silently lost.
Source code in src/voids/io/porespy.py
| def from_porespy(
network_dict: Mapping[str, object],
*,
sample: SampleGeometry | None = None,
provenance: Provenance | None = None,
strict: bool = True,
geometry_repairs: str | None = None,
repair_seed: int | None = 0,
) -> Network:
"""Build a :class:`Network` from a PoreSpy/OpenPNM-style mapping.
Parameters
----------
network_dict :
Mapping containing PoreSpy/OpenPNM keys such as ``pore.coords`` and
``throat.conns``.
sample :
Sample geometry metadata attached to the resulting network. If omitted,
a default empty :class:`SampleGeometry` is used.
provenance :
Provenance metadata. If omitted, a default record with
``source_kind="porespy"`` is created.
strict :
If ``True``, missing topology keys immediately raise an error.
geometry_repairs :
Optional extraction-style preprocessing mode. Set to
``"imperial_export"`` to apply the Imperial College export heuristics
for throat shape-factor repair and pore shape-factor reconstruction.
The default ``None`` preserves the imported geometry as-is apart from
basic alias normalization. The legacy name ``"pnextract"`` is still
accepted as a deprecated alias for backward compatibility.
repair_seed :
Seed for any stochastic repair branch. Only used when
``geometry_repairs="imperial_export"``.
Returns
-------
Network
Imported network in the canonical ``voids`` representation.
Raises
------
KeyError
If the required topology keys are missing.
Notes
-----
The importer performs several normalizations:
- PoreSpy/OpenPNM aliases are mapped to canonical ``voids`` names.
- Two-dimensional coordinates are embedded into 3D as ``(x, y, 0)``.
- Basic missing geometry is derived when possible.
- Common boundary aliases such as ``left`` and ``right`` are mirrored to
``inlet_xmin`` and ``outlet_xmax``.
OpenPNM-style arrays that are not part of the formal schema, such as
``throat.hydraulic_size_factors``, are preserved in ``net.extra`` so that
information is not silently lost.
"""
if "throat.conns" not in network_dict or "pore.coords" not in network_dict:
if strict:
raise KeyError(
"PoreSpy/OpenPNM-style dict must include 'throat.conns' and 'pore.coords'"
)
pore_data: dict[str, np.ndarray] = {}
throat_data: dict[str, np.ndarray] = {}
pore_labels: dict[str, np.ndarray] = {}
throat_labels: dict[str, np.ndarray] = {}
extra: dict[str, object] = {}
throat_conns = None
pore_coords = None
for key, value in network_dict.items():
arr = _normalize_value(value)
if key in _PORESPY_KEYMAP:
family, canonical, reserved = _PORESPY_KEYMAP[key]
if reserved == "conns":
throat_conns = np.asarray(arr, dtype=int)
continue
if reserved == "coords":
pore_coords = np.asarray(arr, dtype=float)
continue
if canonical is None:
continue
if family == "pore":
pore_data[canonical] = np.asarray(arr)
else:
throat_data[canonical] = np.asarray(arr)
continue
if key.startswith("pore."):
sub = key[5:]
if np.asarray(arr).dtype == bool:
pore_labels[sub] = np.asarray(arr, dtype=bool)
else:
pore_data[sub.replace(".", "_")] = np.asarray(arr)
elif key.startswith("throat."):
sub = key[7:]
if np.asarray(arr).dtype == bool:
throat_labels[sub] = np.asarray(arr, dtype=bool)
else:
throat_data[sub.replace(".", "_")] = np.asarray(arr)
else:
extra[key] = value
if throat_conns is None or pore_coords is None:
throat_conns = np.asarray(network_dict.get("throat.conns"))
pore_coords = np.asarray(network_dict.get("pore.coords"), dtype=float)
if throat_conns.ndim == 0 or pore_coords.ndim == 0:
raise KeyError("Required keys 'throat.conns' and/or 'pore.coords' missing")
if pore_coords.ndim == 2 and pore_coords.shape[1] == 2:
pore_coords = np.column_stack([pore_coords, np.zeros(pore_coords.shape[0])])
for alias, canonical in _AXIS_LABEL_ALIASES:
if alias in pore_labels and canonical not in pore_labels:
pore_labels[canonical] = pore_labels[alias]
_ensure_inscribed_size_aliases(pore_data)
_ensure_inscribed_size_aliases(throat_data)
geometry_repairs = _normalize_geometry_repairs_mode(geometry_repairs)
if geometry_repairs not in {None, "imperial_export"}:
raise ValueError("geometry_repairs must be None or 'imperial_export'")
if geometry_repairs == "imperial_export":
extra["geometry_repairs"] = _apply_imperial_export_geometry_repairs(
pore_data,
throat_data,
np.asarray(throat_conns, dtype=int),
num_pores=int(pore_coords.shape[0]),
random_seed=repair_seed,
)
conduit_summary = _derive_missing_conduit_lengths(
pore_data,
throat_data,
np.asarray(throat_conns, dtype=int),
np.asarray(pore_coords, dtype=float),
)
if conduit_summary is not None:
extra["conduit_lengths"] = conduit_summary
_derive_missing_geometry(pore_data, throat_data)
if "hydraulic_size_factors" in throat_data:
extra["throat.hydraulic_size_factors"] = throat_data.pop("hydraulic_size_factors")
warnings.warn(
"Stored throat.hydraulic_size_factors in net.extra; the auto conductance model can use it",
RuntimeWarning,
stacklevel=2,
)
net = Network(
throat_conns=throat_conns,
pore_coords=pore_coords,
sample=sample or SampleGeometry(),
provenance=provenance or Provenance(source_kind="porespy"),
pore=pore_data,
throat=throat_data,
pore_labels=pore_labels,
throat_labels=throat_labels,
extra=extra,
)
validate_network(net)
return net
|
OpenPNM Export
from_porespy(
network_dict,
*,
sample=None,
provenance=None,
strict=True,
geometry_repairs=None,
repair_seed=0,
)
Build a :class:Network from a PoreSpy/OpenPNM-style mapping.
Parameters:
| Name |
Type |
Description |
Default |
network_dict
|
Mapping[str, object]
|
Mapping containing PoreSpy/OpenPNM keys such as pore.coords and
throat.conns.
|
required
|
sample
|
SampleGeometry | None
|
Sample geometry metadata attached to the resulting network. If omitted,
a default empty :class:SampleGeometry is used.
|
None
|
provenance
|
Provenance | None
|
Provenance metadata. If omitted, a default record with
source_kind="porespy" is created.
|
None
|
strict
|
bool
|
If True, missing topology keys immediately raise an error.
|
True
|
geometry_repairs
|
str | None
|
Optional extraction-style preprocessing mode. Set to
"imperial_export" to apply the Imperial College export heuristics
for throat shape-factor repair and pore shape-factor reconstruction.
The default None preserves the imported geometry as-is apart from
basic alias normalization. The legacy name "pnextract" is still
accepted as a deprecated alias for backward compatibility.
|
None
|
repair_seed
|
int | None
|
Seed for any stochastic repair branch. Only used when
geometry_repairs="imperial_export".
|
0
|
Returns:
| Type |
Description |
Network
|
Imported network in the canonical voids representation.
|
Raises:
| Type |
Description |
KeyError
|
If the required topology keys are missing.
|
Notes
The importer performs several normalizations:
- PoreSpy/OpenPNM aliases are mapped to canonical
voids names.
- Two-dimensional coordinates are embedded into 3D as
(x, y, 0).
- Basic missing geometry is derived when possible.
- Common boundary aliases such as
left and right are mirrored to
inlet_xmin and outlet_xmax.
OpenPNM-style arrays that are not part of the formal schema, such as
throat.hydraulic_size_factors, are preserved in net.extra so that
information is not silently lost.
Source code in src/voids/io/porespy.py
| def from_porespy(
network_dict: Mapping[str, object],
*,
sample: SampleGeometry | None = None,
provenance: Provenance | None = None,
strict: bool = True,
geometry_repairs: str | None = None,
repair_seed: int | None = 0,
) -> Network:
"""Build a :class:`Network` from a PoreSpy/OpenPNM-style mapping.
Parameters
----------
network_dict :
Mapping containing PoreSpy/OpenPNM keys such as ``pore.coords`` and
``throat.conns``.
sample :
Sample geometry metadata attached to the resulting network. If omitted,
a default empty :class:`SampleGeometry` is used.
provenance :
Provenance metadata. If omitted, a default record with
``source_kind="porespy"`` is created.
strict :
If ``True``, missing topology keys immediately raise an error.
geometry_repairs :
Optional extraction-style preprocessing mode. Set to
``"imperial_export"`` to apply the Imperial College export heuristics
for throat shape-factor repair and pore shape-factor reconstruction.
The default ``None`` preserves the imported geometry as-is apart from
basic alias normalization. The legacy name ``"pnextract"`` is still
accepted as a deprecated alias for backward compatibility.
repair_seed :
Seed for any stochastic repair branch. Only used when
``geometry_repairs="imperial_export"``.
Returns
-------
Network
Imported network in the canonical ``voids`` representation.
Raises
------
KeyError
If the required topology keys are missing.
Notes
-----
The importer performs several normalizations:
- PoreSpy/OpenPNM aliases are mapped to canonical ``voids`` names.
- Two-dimensional coordinates are embedded into 3D as ``(x, y, 0)``.
- Basic missing geometry is derived when possible.
- Common boundary aliases such as ``left`` and ``right`` are mirrored to
``inlet_xmin`` and ``outlet_xmax``.
OpenPNM-style arrays that are not part of the formal schema, such as
``throat.hydraulic_size_factors``, are preserved in ``net.extra`` so that
information is not silently lost.
"""
if "throat.conns" not in network_dict or "pore.coords" not in network_dict:
if strict:
raise KeyError(
"PoreSpy/OpenPNM-style dict must include 'throat.conns' and 'pore.coords'"
)
pore_data: dict[str, np.ndarray] = {}
throat_data: dict[str, np.ndarray] = {}
pore_labels: dict[str, np.ndarray] = {}
throat_labels: dict[str, np.ndarray] = {}
extra: dict[str, object] = {}
throat_conns = None
pore_coords = None
for key, value in network_dict.items():
arr = _normalize_value(value)
if key in _PORESPY_KEYMAP:
family, canonical, reserved = _PORESPY_KEYMAP[key]
if reserved == "conns":
throat_conns = np.asarray(arr, dtype=int)
continue
if reserved == "coords":
pore_coords = np.asarray(arr, dtype=float)
continue
if canonical is None:
continue
if family == "pore":
pore_data[canonical] = np.asarray(arr)
else:
throat_data[canonical] = np.asarray(arr)
continue
if key.startswith("pore."):
sub = key[5:]
if np.asarray(arr).dtype == bool:
pore_labels[sub] = np.asarray(arr, dtype=bool)
else:
pore_data[sub.replace(".", "_")] = np.asarray(arr)
elif key.startswith("throat."):
sub = key[7:]
if np.asarray(arr).dtype == bool:
throat_labels[sub] = np.asarray(arr, dtype=bool)
else:
throat_data[sub.replace(".", "_")] = np.asarray(arr)
else:
extra[key] = value
if throat_conns is None or pore_coords is None:
throat_conns = np.asarray(network_dict.get("throat.conns"))
pore_coords = np.asarray(network_dict.get("pore.coords"), dtype=float)
if throat_conns.ndim == 0 or pore_coords.ndim == 0:
raise KeyError("Required keys 'throat.conns' and/or 'pore.coords' missing")
if pore_coords.ndim == 2 and pore_coords.shape[1] == 2:
pore_coords = np.column_stack([pore_coords, np.zeros(pore_coords.shape[0])])
for alias, canonical in _AXIS_LABEL_ALIASES:
if alias in pore_labels and canonical not in pore_labels:
pore_labels[canonical] = pore_labels[alias]
_ensure_inscribed_size_aliases(pore_data)
_ensure_inscribed_size_aliases(throat_data)
geometry_repairs = _normalize_geometry_repairs_mode(geometry_repairs)
if geometry_repairs not in {None, "imperial_export"}:
raise ValueError("geometry_repairs must be None or 'imperial_export'")
if geometry_repairs == "imperial_export":
extra["geometry_repairs"] = _apply_imperial_export_geometry_repairs(
pore_data,
throat_data,
np.asarray(throat_conns, dtype=int),
num_pores=int(pore_coords.shape[0]),
random_seed=repair_seed,
)
conduit_summary = _derive_missing_conduit_lengths(
pore_data,
throat_data,
np.asarray(throat_conns, dtype=int),
np.asarray(pore_coords, dtype=float),
)
if conduit_summary is not None:
extra["conduit_lengths"] = conduit_summary
_derive_missing_geometry(pore_data, throat_data)
if "hydraulic_size_factors" in throat_data:
extra["throat.hydraulic_size_factors"] = throat_data.pop("hydraulic_size_factors")
warnings.warn(
"Stored throat.hydraulic_size_factors in net.extra; the auto conductance model can use it",
RuntimeWarning,
stacklevel=2,
)
net = Network(
throat_conns=throat_conns,
pore_coords=pore_coords,
sample=sample or SampleGeometry(),
provenance=provenance or Provenance(source_kind="porespy"),
pore=pore_data,
throat=throat_data,
pore_labels=pore_labels,
throat_labels=throat_labels,
extra=extra,
)
validate_network(net)
return net
|
to_openpnm_dict(net, *, include_extra=False)
Export a network to an OpenPNM/PoreSpy-style flat dictionary.
Parameters:
| Name |
Type |
Description |
Default |
net
|
Network
|
|
required
|
include_extra
|
bool
|
If True, merge net.extra into the output dictionary.
|
False
|
Returns:
| Type |
Description |
dict of str to Any
|
Flat mapping using keys such as "pore.coords" and "throat.conns".
|
Notes
The mapping preserves aliases expected by :func:voids.io.porespy.from_porespy.
Conduit-length fields are emitted both under their internal names
(for round-tripping within voids) and under OpenPNM-style names
such as throat.conduit_lengths.pore1.
Source code in src/voids/io/openpnm.py
| def to_openpnm_dict(net: Network, *, include_extra: bool = False) -> dict[str, Any]:
"""Export a network to an OpenPNM/PoreSpy-style flat dictionary.
Parameters
----------
net :
Network to export.
include_extra :
If ``True``, merge ``net.extra`` into the output dictionary.
Returns
-------
dict of str to Any
Flat mapping using keys such as ``"pore.coords"`` and ``"throat.conns"``.
Notes
-----
The mapping preserves aliases expected by :func:`voids.io.porespy.from_porespy`.
Conduit-length fields are emitted both under their internal names
(for round-tripping within ``voids``) and under OpenPNM-style names
such as ``throat.conduit_lengths.pore1``.
"""
out: dict[str, Any] = {
"pore.coords": np.asarray(net.pore_coords, dtype=float).copy(),
"throat.conns": np.asarray(net.throat_conns, dtype=int).copy(),
}
for k, v in net.pore.items():
out[f"pore.{k}"] = np.asarray(v).copy()
for k, v in net.throat.items():
if k in {"pore1_length", "core_length", "pore2_length"}:
alias_map = {
"pore1_length": "throat.conduit_lengths.pore1",
"core_length": "throat.conduit_lengths.throat",
"pore2_length": "throat.conduit_lengths.pore2",
}
out[alias_map[k]] = np.asarray(v).copy()
out[f"throat.{k}"] = np.asarray(v).copy()
for k, v in net.pore_labels.items():
out[f"pore.{k}"] = np.asarray(v, dtype=bool).copy()
for k, v in net.throat_labels.items():
out[f"throat.{k}"] = np.asarray(v, dtype=bool).copy()
if include_extra:
out.update(net.extra)
return out
|
to_openpnm_network(
net,
*,
copy_properties=True,
copy_labels=True,
include_extra=False,
)
Convert a :class:Network into an OpenPNM network object.
Parameters:
| Name |
Type |
Description |
Default |
net
|
Network
|
|
required
|
copy_properties
|
bool
|
If True, copy numeric pore and throat properties into the OpenPNM object.
|
True
|
copy_labels
|
bool
|
If True, copy pore and throat boolean labels.
|
True
|
include_extra
|
bool
|
If True, attempt to copy entries from net.extra whose keys already
follow the pore.* or throat.* naming convention.
|
False
|
Returns:
| Type |
Description |
Any
|
OpenPNM network object. The precise class depends on the installed OpenPNM version.
|
Raises:
| Type |
Description |
ImportError
|
If OpenPNM is not installed.
|
RuntimeError
|
If a compatible OpenPNM network object cannot be instantiated.
|
Notes
OpenPNM's constructor signatures vary across versions. This helper tries a small
set of known call patterns and always assigns pore.coords and
throat.conns explicitly afterward so that topology transfer is version-robust.
Source code in src/voids/io/openpnm.py
| def to_openpnm_network(
net: Network,
*,
copy_properties: bool = True,
copy_labels: bool = True,
include_extra: bool = False,
) -> openpnm.network.Network:
"""Convert a :class:`Network` into an OpenPNM network object.
Parameters
----------
net :
Network to convert.
copy_properties :
If ``True``, copy numeric pore and throat properties into the OpenPNM object.
copy_labels :
If ``True``, copy pore and throat boolean labels.
include_extra :
If ``True``, attempt to copy entries from ``net.extra`` whose keys already
follow the ``pore.*`` or ``throat.*`` naming convention.
Returns
-------
Any
OpenPNM network object. The precise class depends on the installed OpenPNM version.
Raises
------
ImportError
If OpenPNM is not installed.
RuntimeError
If a compatible OpenPNM network object cannot be instantiated.
Notes
-----
OpenPNM's constructor signatures vary across versions. This helper tries a small
set of known call patterns and always assigns ``pore.coords`` and
``throat.conns`` explicitly afterward so that topology transfer is version-robust.
"""
try:
import openpnm as op
except Exception as exc: # pragma: no cover - optional dependency
raise ImportError("OpenPNM is not installed") from exc
coords = np.asarray(net.pore_coords, dtype=float)
conns = np.asarray(net.throat_conns, dtype=int)
pn = None
errs: list[Exception] = []
for ctor in (
lambda: op.network.Network(coords=coords, conns=conns),
lambda: op.network.Network(conns=conns, coords=coords),
lambda: op.network.Network(),
):
try:
pn = ctor()
break
except Exception as e: # pragma: no cover - depends on OpenPNM version
errs.append(e)
if pn is None: # pragma: no cover
raise RuntimeError(f"Unable to instantiate OpenPNM Network: {errs!r}")
pn["pore.coords"] = coords
pn["throat.conns"] = conns
if copy_properties:
for k, v in net.pore.items():
pn[f"pore.{k}"] = np.asarray(v)
for k, v in net.throat.items():
pn[f"throat.{k}"] = np.asarray(v)
if copy_labels:
for k, v in net.pore_labels.items():
pn[f"pore.{k}"] = np.asarray(v, dtype=bool)
for k, v in net.throat_labels.items():
pn[f"throat.{k}"] = np.asarray(v, dtype=bool)
if include_extra:
for k, v in net.extra.items():
if isinstance(k, str) and (k.startswith("pore.") or k.startswith("throat.")):
try:
pn[k] = np.asarray(v)
except Exception:
pass
return pn
|
CNM Import
dataclass
Container for an imported Imperial College CNM network.
Attributes:
| Name |
Type |
Description |
net |
Network
|
Imported network ready for voids single-phase calculations.
|
prefix |
Path
|
File prefix used to locate the CNM text files.
|
box_lengths |
dict[str, float]
|
Physical sample lengths encoded in the CNM header.
|
n_physical_pores |
int
|
Number of pores listed in *_node*.dat, excluding mirrored
inlet/outlet helper pores inserted during import.
|
n_boundary_mirror_pores |
int
|
Number of helper pores added to mimic pnflow reservoir semantics.
|
Source code in src/voids/io/pnflow_cnm.py
| @dataclass(slots=True)
class PnflowCNMImportResult:
"""Container for an imported Imperial College CNM network.
Attributes
----------
net :
Imported network ready for `voids` single-phase calculations.
prefix :
File prefix used to locate the CNM text files.
box_lengths :
Physical sample lengths encoded in the CNM header.
n_physical_pores :
Number of pores listed in `*_node*.dat`, excluding mirrored
inlet/outlet helper pores inserted during import.
n_boundary_mirror_pores :
Number of helper pores added to mimic `pnflow` reservoir semantics.
"""
net: Network
prefix: Path
box_lengths: dict[str, float]
n_physical_pores: int
n_boundary_mirror_pores: int
|
load_pnflow_cnm(
prefix,
*,
boundary_axis="x",
length_unit="m",
pressure_unit="Pa",
boundary_length_epsilon=_BOUNDARY_LENGTH_EPS,
boundary_radius_scale=1.1,
pnflow_solver_box_compat=False,
)
Import an Imperial College pnextract / pnflow CNM text network.
Parameters:
| Name |
Type |
Description |
Default |
prefix
|
str | Path
|
File prefix for the four CNM text files. For a benchmark case stored as
case_dir/case_name_node1.dat, pass case_dir/case_name.
|
required
|
boundary_axis
|
str
|
Axis along which the inlet/outlet reservoir labels are attached. The
committed Imperial CNM format is x-directed, so "x" is the default
and the only axis currently supported.
|
'x'
|
length_unit
|
str
|
Unit metadata attached to the resulting SampleGeometry.
|
'm'
|
pressure_unit
|
str
|
Unit metadata attached to the resulting SampleGeometry.
|
'm'
|
boundary_length_epsilon
|
float
|
Small positive reservoir-side pore length used to reproduce the
near-zero boundary resistance applied internally by pnflow.
|
_BOUNDARY_LENGTH_EPS
|
boundary_radius_scale
|
float
|
Scale factor used for mirrored inlet/outlet helper pores. This follows
the InOutBoundary::prepare2() construction in the Imperial code.
|
1.1
|
pnflow_solver_box_compat
|
bool
|
If True, reproduce the Imperial CNM preprocessing quirk that
excludes the first physical pore from the solver box when
nBSs_ = 2 is hard-coded in FlowDomain.cpp. The excluded pore is
then treated as an inlet or outlet solver-boundary pore based on its
x-position relative to the sample mid-plane. This is kept opt-in
because it reproduces checked-in pnflow behavior rather than a
generic physical boundary rule. Enabling this option is required for
near machine-precision single-phase parity with the saved pnflow
benchmark cases.
|
False
|
Returns:
Notes
The CNM text files store internal pores only. To match pnflow's
single-phase boundary treatment more closely, this importer inserts one
zero-volume mirrored pore for each inlet/outlet connection throat and
collapses the reservoir-side pore segment length to a tiny positive value.
Source code in src/voids/io/pnflow_cnm.py
| def load_pnflow_cnm(
prefix: str | Path,
*,
boundary_axis: str = "x",
length_unit: str = "m",
pressure_unit: str = "Pa",
boundary_length_epsilon: float = _BOUNDARY_LENGTH_EPS,
boundary_radius_scale: float = 1.1,
pnflow_solver_box_compat: bool = False,
) -> PnflowCNMImportResult:
"""Import an Imperial College `pnextract` / `pnflow` CNM text network.
Parameters
----------
prefix :
File prefix for the four CNM text files. For a benchmark case stored as
`case_dir/case_name_node1.dat`, pass `case_dir/case_name`.
boundary_axis :
Axis along which the inlet/outlet reservoir labels are attached. The
committed Imperial CNM format is x-directed, so `"x"` is the default
and the only axis currently supported.
length_unit, pressure_unit :
Unit metadata attached to the resulting `SampleGeometry`.
boundary_length_epsilon :
Small positive reservoir-side pore length used to reproduce the
near-zero boundary resistance applied internally by `pnflow`.
boundary_radius_scale :
Scale factor used for mirrored inlet/outlet helper pores. This follows
the `InOutBoundary::prepare2()` construction in the Imperial code.
pnflow_solver_box_compat :
If ``True``, reproduce the Imperial CNM preprocessing quirk that
excludes the first physical pore from the solver box when
``nBSs_ = 2`` is hard-coded in `FlowDomain.cpp`. The excluded pore is
then treated as an inlet or outlet solver-boundary pore based on its
x-position relative to the sample mid-plane. This is kept opt-in
because it reproduces checked-in `pnflow` behavior rather than a
generic physical boundary rule. Enabling this option is required for
near machine-precision single-phase parity with the saved `pnflow`
benchmark cases.
Returns
-------
PnflowCNMImportResult
Imported network together with import metadata.
Notes
-----
The CNM text files store internal pores only. To match `pnflow`'s
single-phase boundary treatment more closely, this importer inserts one
zero-volume mirrored pore for each inlet/outlet connection throat and
collapses the reservoir-side pore segment length to a tiny positive value.
"""
if boundary_axis != "x":
raise ValueError("Imperial CNM import currently supports only boundary_axis='x'")
if boundary_length_epsilon <= 0.0:
raise ValueError("boundary_length_epsilon must be positive")
if boundary_radius_scale <= 0.0:
raise ValueError("boundary_radius_scale must be positive")
prefix_path = Path(prefix)
node1_path = prefix_path.with_name(f"{prefix_path.name}_node1.dat")
node2_path = prefix_path.with_name(f"{prefix_path.name}_node2.dat")
link1_path = prefix_path.with_name(f"{prefix_path.name}_link1.dat")
link2_path = prefix_path.with_name(f"{prefix_path.name}_link2.dat")
node1_lines = node1_path.read_text().splitlines()
node2_lines = node2_path.read_text().splitlines()
link1_lines = link1_path.read_text().splitlines()
link2_lines = link2_path.read_text().splitlines()
if not node1_lines:
raise ValueError(f"CNM file is empty: {node1_path}")
header = _split_numeric_line(node1_lines[0], expected_min_tokens=4, label=str(node1_path))
n_physical_pores = int(header[0])
lx, ly, lz = map(float, header[1:4])
box_lengths = {"x": lx, "y": ly, "z": lz}
cross_sections = {"x": ly * lz, "y": lx * lz, "z": lx * ly}
if len(node1_lines) != n_physical_pores + 1:
raise ValueError(
f"{node1_path} header declares {n_physical_pores} pores but file contains "
f"{len(node1_lines) - 1} pore rows"
)
if len(node2_lines) != n_physical_pores:
raise ValueError(
f"{node2_path} should contain {n_physical_pores} pore rows, got {len(node2_lines)}"
)
if not link1_lines:
raise ValueError(f"CNM file is empty: {link1_path}")
n_throats = int(
_split_numeric_line(link1_lines[0], expected_min_tokens=1, label=str(link1_path))[0]
)
link1_rows = link1_lines[1:]
if len(link1_rows) != n_throats or len(link2_lines) != n_throats:
raise ValueError(
f"Throat-row mismatch for prefix {prefix_path}: "
f"header={n_throats}, link1_rows={len(link1_rows)}, link2_rows={len(link2_lines)}"
)
pore_coords = np.zeros((n_physical_pores, 3), dtype=float)
pore_volume = np.zeros(n_physical_pores, dtype=float)
pore_radius = np.zeros(n_physical_pores, dtype=float)
pore_shape_factor_raw = np.zeros(n_physical_pores, dtype=float)
pore_connected_inlet = np.zeros(n_physical_pores, dtype=bool)
pore_connected_outlet = np.zeros(n_physical_pores, dtype=bool)
for line in node1_lines[1:]:
tokens = _split_numeric_line(line, expected_min_tokens=6, label=str(node1_path))
idx = int(tokens[0]) - 1
x, y, z = map(float, tokens[1:4])
conn_number = int(tokens[4])
inlet_pos = 5 + conn_number
outlet_pos = inlet_pos + 1
if len(tokens) < outlet_pos + 1 + conn_number:
raise ValueError(f"Malformed pore-connectivity row in {node1_path}: {line}")
pore_coords[idx] = (x, y, z)
pore_connected_inlet[idx] = bool(int(tokens[inlet_pos]))
pore_connected_outlet[idx] = bool(int(tokens[outlet_pos]))
for line in node2_lines:
tokens = _split_numeric_line(line, expected_min_tokens=5, label=str(node2_path))
idx = int(tokens[0]) - 1
pore_volume[idx] = float(tokens[1])
pore_radius[idx] = max(float(tokens[2]), boundary_length_epsilon)
pore_shape_factor_raw[idx] = max(float(tokens[3]), boundary_length_epsilon)
coords_list = pore_coords.tolist()
volume_list = pore_volume.tolist()
radius_list = pore_radius.tolist()
shape_factor_raw_list = pore_shape_factor_raw.tolist()
inlet_label = np.zeros(n_physical_pores, dtype=bool).tolist()
outlet_label = np.zeros(n_physical_pores, dtype=bool).tolist()
throat_conns: list[list[int]] = []
throat_radius = np.zeros(n_throats, dtype=float)
throat_shape_factor = np.zeros(n_throats, dtype=float)
throat_volume = np.zeros(n_throats, dtype=float)
throat_core_length = np.zeros(n_throats, dtype=float)
throat_pore1_length = np.zeros(n_throats, dtype=float)
throat_pore2_length = np.zeros(n_throats, dtype=float)
n_boundary_mirror_pores = 0
for throat_idx, (line1, line2) in enumerate(zip(link1_rows, link2_lines, strict=True)):
tokens1 = _split_numeric_line(line1, expected_min_tokens=6, label=str(link1_path))
tokens2 = _split_numeric_line(line2, expected_min_tokens=8, label=str(link2_path))
pore1_idx_raw = int(tokens1[1])
pore2_idx_raw = int(tokens1[2])
throat_radius[throat_idx] = max(float(tokens1[3]), boundary_length_epsilon)
throat_shape_factor[throat_idx] = max(float(tokens1[4]), boundary_length_epsilon)
throat_pore1_length[throat_idx] = max(float(tokens2[3]), boundary_length_epsilon)
throat_pore2_length[throat_idx] = max(float(tokens2[4]), boundary_length_epsilon)
throat_core_length[throat_idx] = max(float(tokens2[5]), boundary_length_epsilon)
throat_volume[throat_idx] = float(tokens2[6])
left = pore1_idx_raw - 1 if pore1_idx_raw > 0 else None
right = pore2_idx_raw - 1 if pore2_idx_raw > 0 else None
if pore1_idx_raw in {-1, 0}:
if right is None:
raise ValueError(
f"Boundary throat without an internal neighbor in {link1_path}: {line1}"
)
x_boundary = 0.0 if pore1_idx_raw == -1 else lx
coords_list.append([x_boundary, pore_coords[right, 1], pore_coords[right, 2]])
volume_list.append(0.0)
radius_list.append(throat_radius[throat_idx] * boundary_radius_scale)
shape_factor_raw_list.append(throat_shape_factor[throat_idx])
inlet_label.append(pore1_idx_raw == -1)
outlet_label.append(pore1_idx_raw == 0)
left = len(coords_list) - 1
throat_pore1_length[throat_idx] = boundary_length_epsilon
n_boundary_mirror_pores += 1
if pore2_idx_raw in {-1, 0}:
if left is None:
raise ValueError(
f"Boundary throat without an internal neighbor in {link1_path}: {line1}"
)
x_boundary = 0.0 if pore2_idx_raw == -1 else lx
left_coords = coords_list[left]
coords_list.append([x_boundary, left_coords[1], left_coords[2]])
volume_list.append(0.0)
radius_list.append(throat_radius[throat_idx] * boundary_radius_scale)
shape_factor_raw_list.append(throat_shape_factor[throat_idx])
inlet_label.append(pore2_idx_raw == -1)
outlet_label.append(pore2_idx_raw == 0)
right = len(coords_list) - 1
throat_pore2_length[throat_idx] = boundary_length_epsilon
n_boundary_mirror_pores += 1
if left is None or right is None:
raise ValueError(f"Unresolved throat endpoints while importing {link1_path}: {line1}")
throat_conns.append([left, right])
pore_coords_arr = np.asarray(coords_list, dtype=float)
pore_volume_arr = np.asarray(volume_list, dtype=float)
pore_radius_arr = np.asarray(radius_list, dtype=float)
pore_shape_factor_raw_arr = np.asarray(shape_factor_raw_list, dtype=float)
pore_shape_factor_arr = _pnflow_effective_shape_factor(pore_shape_factor_raw_arr)
inlet_label_arr = np.asarray(inlet_label, dtype=bool)
outlet_label_arr = np.asarray(outlet_label, dtype=bool)
if pnflow_solver_box_compat and n_physical_pores > 0:
if pore_coords_arr[0, 0] < 0.5 * lx:
inlet_label_arr[0] = True
else:
outlet_label_arr[0] = True
pore_area_arr = pore_radius_arr**2 / (4.0 * pore_shape_factor_arr)
throat_shape_factor_raw = throat_shape_factor.copy()
throat_shape_factor = _pnflow_effective_shape_factor(throat_shape_factor_raw)
throat_area = throat_radius**2 / (4.0 * throat_shape_factor)
net = Network(
throat_conns=np.asarray(throat_conns, dtype=np.int64),
pore_coords=pore_coords_arr,
sample=SampleGeometry(
bulk_volume=lx * ly * lz,
lengths=box_lengths,
cross_sections=cross_sections,
units={"length": length_unit, "pressure": pressure_unit},
),
provenance=Provenance(
source_kind="external_network",
extraction_method="pnextract_cnm_text",
user_notes={
"prefix": str(prefix_path),
"boundary_axis": boundary_axis,
"boundary_length_epsilon": boundary_length_epsilon,
"boundary_radius_scale": boundary_radius_scale,
"pnflow_solver_box_compat": pnflow_solver_box_compat,
},
),
pore={
"volume": pore_volume_arr,
"radius_inscribed": pore_radius_arr,
"diameter_inscribed": 2.0 * pore_radius_arr,
"shape_factor": pore_shape_factor_arr,
"shape_factor_raw": pore_shape_factor_raw_arr,
"area": pore_area_arr,
},
throat={
"volume": throat_volume,
"radius_inscribed": throat_radius,
"diameter_inscribed": 2.0 * throat_radius,
"shape_factor": throat_shape_factor,
"shape_factor_raw": throat_shape_factor_raw,
"area": throat_area,
"core_length": throat_core_length,
"pore1_length": throat_pore1_length,
"pore2_length": throat_pore2_length,
"length": throat_core_length + throat_pore1_length + throat_pore2_length,
},
pore_labels={
"inlet_xmin": inlet_label_arr,
"outlet_xmax": outlet_label_arr,
"boundary": inlet_label_arr | outlet_label_arr,
"boundary_connected_inlet_xmin": np.pad(
pore_connected_inlet,
(0, n_boundary_mirror_pores),
constant_values=False,
),
"boundary_connected_outlet_xmax": np.pad(
pore_connected_outlet,
(0, n_boundary_mirror_pores),
constant_values=False,
),
},
extra={
"pnflow_cnm": {
"prefix": str(prefix_path),
"n_physical_pores": n_physical_pores,
"n_boundary_mirror_pores": n_boundary_mirror_pores,
"box_lengths": box_lengths,
"pnflow_solver_box_compat": pnflow_solver_box_compat,
}
},
)
validate_network(net)
return PnflowCNMImportResult(
net=net,
prefix=prefix_path,
box_lengths=box_lengths,
n_physical_pores=n_physical_pores,
n_boundary_mirror_pores=n_boundary_mirror_pores,
)
|
Image Volume And Surface Mesh I/O

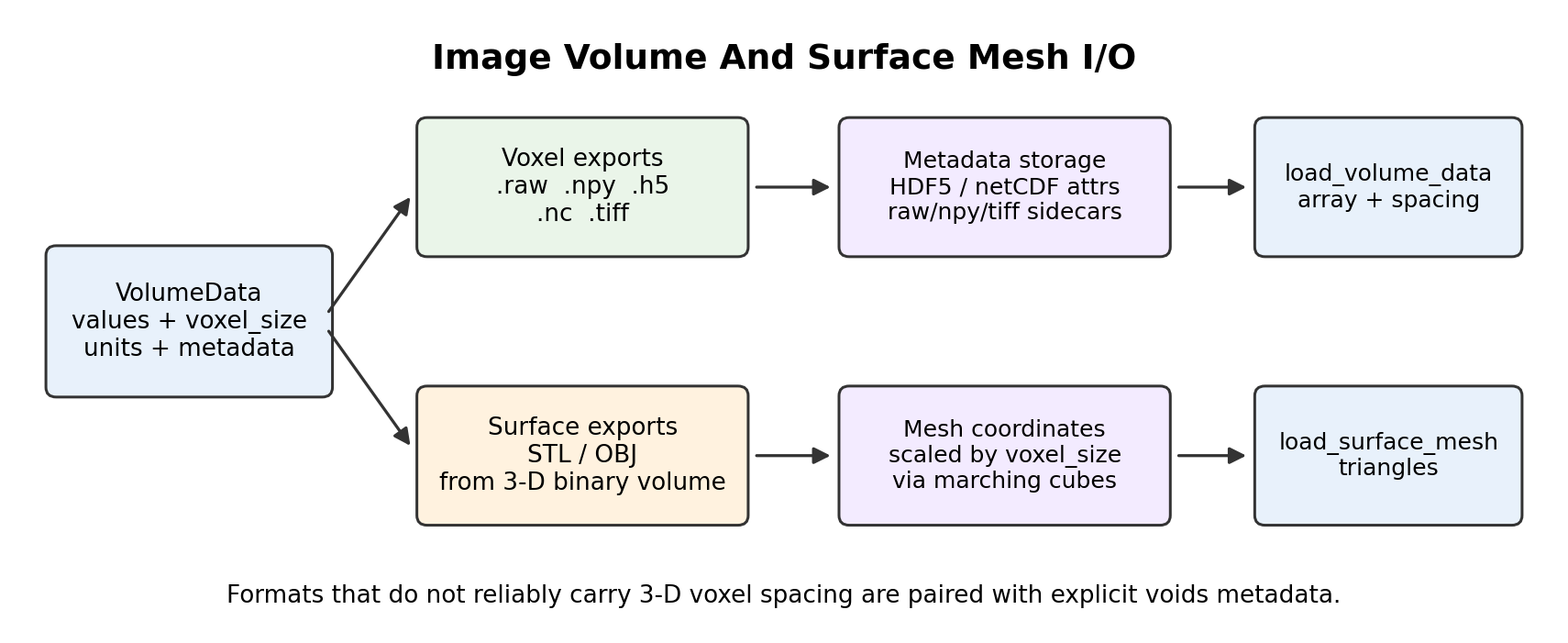

voids.io.volume provides the image-volume import/export surface used by the
synthetic image workflows. The central object is VolumeData, which couples a
2-D or 3-D image array to its physical voxel spacing, length units, and
provenance metadata.
Use VolumeData when the image is intended to leave Python or feed a
continuum/FEM workflow:
from voids.io import VolumeData, save_volume_bundle
case_data = VolumeData(
values=void_image,
voxel_size=(40.0e-6, 40.0e-6, 40.0e-6),
units={"length": "m"},
metadata={"case": "macro_micro_vug"},
)
written = save_volume_bundle(
case_data,
"outputs/synthetic_case",
stem="macro_micro_vug",
formats=("raw", "npy", "h5", "nc", "tiff", "stl", "obj"),
)
| Format |
Kind |
Metadata handling |
.raw |
voxel field |
Written with a .raw.json sidecar containing shape, dtype, voxel size, units, and provenance metadata |
.npy |
voxel field |
NumPy-native array plus .npy.json sidecar for voxel size, units, and provenance metadata |
.h5 |
voxel field |
HDF5 dataset /volume plus JSON metadata attributes |
.nc |
voxel field |
Basic netCDF variable volume plus metadata attributes |
.tif, .tiff |
voxel field |
TIFF stack plus .tif.json or .tiff.json sidecar for voxel size, units, and provenance metadata |
.stl |
surface mesh |
3-D binary interface extracted by marching cubes using voxel_size as physical spacing |
.obj |
surface mesh |
3-D binary interface extracted by marching cubes using voxel_size as physical spacing |
STL and OBJ exports require a 3-D binary volume containing both void and solid
voxels. The binary volume must be a boolean array or a numeric array whose
values are limited to 0 and 1. These exports represent the void/solid interface
as a triangular surface, not the full voxel field.
Loading Voxel Volumes
Use load_volume when only the array is needed:
from voids.io import load_volume
volume = load_volume("outputs/synthetic_case/macro_micro_vug.h5")
Use load_volume_data when physical resolution matters for porosity maps,
permeability maps, surface exports, or external FEM/continuum solvers:
from voids.io import load_volume_data
volume_data = load_volume_data("outputs/synthetic_case/macro_micro_vug.tiff")
TIFF files may contain some resolution tags in particular software workflows,
but they should not be treated as a reliable source of 3-D voxel spacing. If the
TIFF was not written by voids with its JSON sidecar, pass the voxel size
explicitly:
external_scan = load_volume_data(
"micro_ct_stack.tiff",
voxel_size=(40.0e-6, 40.0e-6, 40.0e-6),
units={"length": "m"},
)
Raw binary files have no self-describing shape, dtype, or voxel resolution. If
the voids sidecar is absent, provide shape, dtype, and voxel size explicitly
when those quantities matter:
volume_data = load_volume_data(
"macro_micro_vug.raw",
shape=(160, 160, 160),
dtype="uint8",
voxel_size=(40.0e-6, 40.0e-6, 40.0e-6),
units={"length": "m"},
)
Loading Surface Meshes
Surface meshes can be read back with:
from voids.io import load_surface_mesh
mesh = load_surface_mesh("outputs/synthetic_case/macro_micro_vug.obj")
Surface files are geometric interchange files. They do not replace the voxel
field when voxel-wise phase information is needed.
dataclass
Triangular surface mesh used for STL/OBJ interchange.
Attributes:
| Name |
Type |
Description |
vertices |
ndarray
|
Floating-point vertex coordinates with shape (n_vertices, 3).
|
faces |
ndarray
|
Integer triangular face connectivity with shape (n_faces, 3).
|
metadata |
dict[str, Any]
|
JSON-serializable provenance metadata.
|
Source code in src/voids/io/volume.py
| @dataclass(slots=True)
class SurfaceMesh:
"""Triangular surface mesh used for STL/OBJ interchange.
Attributes
----------
vertices :
Floating-point vertex coordinates with shape ``(n_vertices, 3)``.
faces :
Integer triangular face connectivity with shape ``(n_faces, 3)``.
metadata :
JSON-serializable provenance metadata.
"""
vertices: np.ndarray
faces: np.ndarray
metadata: dict[str, Any] = field(default_factory=dict)
def __post_init__(self) -> None:
"""Validate and normalize mesh arrays."""
vertices = np.asarray(self.vertices, dtype=float)
faces = np.asarray(self.faces, dtype=np.int64)
if vertices.ndim != 2 or vertices.shape[1] != 3:
raise ValueError("vertices must have shape (n_vertices, 3)")
if faces.ndim != 2 or faces.shape[1] != 3:
raise ValueError("faces must have shape (n_faces, 3)")
if not np.all(np.isfinite(vertices)):
raise ValueError("vertices must be finite")
if np.any(faces < 0):
raise ValueError("faces must be nonnegative")
if faces.size and int(np.max(faces)) >= len(vertices):
raise ValueError("faces reference a vertex outside vertices")
self.vertices = vertices
self.faces = faces
self.metadata = dict(self.metadata)
|
dataclass
Voxel image together with physical spacing and provenance metadata.
Attributes:
| Name |
Type |
Description |
values |
ndarray
|
Two- or three-dimensional image array.
|
voxel_size |
float | Sequence[float]
|
Physical spacing along each image axis. A scalar means isotropic
spacing; a sequence must have one entry per array dimension.
|
units |
dict[str, str]
|
Unit metadata for the spacing. By convention, {"length": "voxel"}
means dimensionless voxel units.
|
metadata |
dict[str, Any]
|
JSON-serializable provenance metadata.
|
Source code in src/voids/io/volume.py
| @dataclass(slots=True)
class VolumeData:
"""Voxel image together with physical spacing and provenance metadata.
Attributes
----------
values :
Two- or three-dimensional image array.
voxel_size :
Physical spacing along each image axis. A scalar means isotropic
spacing; a sequence must have one entry per array dimension.
units :
Unit metadata for the spacing. By convention, ``{"length": "voxel"}``
means dimensionless voxel units.
metadata :
JSON-serializable provenance metadata.
"""
values: np.ndarray
voxel_size: float | Sequence[float] = 1.0
units: dict[str, str] = field(default_factory=lambda: {"length": "voxel"})
metadata: dict[str, Any] = field(default_factory=dict)
def __post_init__(self) -> None:
"""Validate the array and normalize physical spacing metadata."""
values = np.asarray(self.values)
normalize_shape(values.shape, allowed_ndim=(2, 3))
self.values = values
self.voxel_size = _normalize_voxel_size(self.voxel_size, ndim=values.ndim)
self.units = dict(self.units)
self.metadata = dict(self.metadata)
@property
def ndim(self) -> int:
"""Number of image dimensions."""
return int(self.values.ndim)
@property
def shape(self) -> tuple[int, ...]:
"""Image shape in NumPy axis order."""
return tuple(int(v) for v in self.values.shape)
|
property
Number of image dimensions.
property
Image shape in NumPy axis order.
save_volume(
volume,
path,
*,
file_format=None,
metadata=None,
raw_dtype=None,
hdf5_dataset="volume",
netcdf_variable="volume",
voxel_size=None,
units=None,
)
Save a 2D/3D synthetic image volume or surface mesh.
Parameters:
| Name |
Type |
Description |
Default |
volume
|
VolumeData | ndarray
|
Two- or three-dimensional image, or :class:VolumeData with physical
spacing metadata. Boolean arrays are interpreted as True=void for
surface-mesh export.
|
required
|
path
|
str | Path
|
Destination path. Supported suffixes are .raw, .npy, .h5,
.nc, .tif/.tiff, .stl, and .obj.
|
required
|
file_format
|
str | None
|
Optional explicit format when the suffix is ambiguous.
|
None
|
metadata
|
dict[str, Any] | None
|
JSON-serializable provenance metadata stored by metadata-capable formats.
|
None
|
raw_dtype
|
str | dtype[Any] | None
|
Storage dtype for raw binary export. Defaults to uint8 for boolean
images and to the input dtype otherwise.
|
None
|
hdf5_dataset
|
str
|
Dataset/variable names for HDF5 and netCDF.
|
'volume'
|
netcdf_variable
|
str
|
Dataset/variable names for HDF5 and netCDF.
|
'volume'
|
voxel_size
|
float | Sequence[float] | None
|
Physical voxel spacing. A scalar means isotropic spacing; a sequence
must have one entry per image axis. The value is stored in metadata for
voxel formats and used as marching-cubes spacing for STL/OBJ surfaces.
|
None
|
units
|
dict[str, str] | None
|
Unit metadata for voxel_size. Defaults to {"length": "voxel"}
for plain arrays, or to the units stored on :class:VolumeData.
|
None
|
Returns:
Notes
Raw, NumPy, and TIFF files do not reliably carry the physical voxel spacing
needed by downstream solvers, so a JSON sidecar with suffix .<ext>.json
is written next to those files.
Source code in src/voids/io/volume.py
| def save_volume(
volume: VolumeData | np.ndarray,
path: str | Path,
*,
file_format: str | None = None,
metadata: dict[str, Any] | None = None,
raw_dtype: str | np.dtype[Any] | None = None,
hdf5_dataset: str = "volume",
netcdf_variable: str = "volume",
voxel_size: float | Sequence[float] | None = None,
units: dict[str, str] | None = None,
) -> Path:
"""Save a 2D/3D synthetic image volume or surface mesh.
Parameters
----------
volume :
Two- or three-dimensional image, or :class:`VolumeData` with physical
spacing metadata. Boolean arrays are interpreted as ``True=void`` for
surface-mesh export.
path :
Destination path. Supported suffixes are ``.raw``, ``.npy``, ``.h5``,
``.nc``, ``.tif``/``.tiff``, ``.stl``, and ``.obj``.
file_format :
Optional explicit format when the suffix is ambiguous.
metadata :
JSON-serializable provenance metadata stored by metadata-capable formats.
raw_dtype :
Storage dtype for raw binary export. Defaults to ``uint8`` for boolean
images and to the input dtype otherwise.
hdf5_dataset, netcdf_variable :
Dataset/variable names for HDF5 and netCDF.
voxel_size :
Physical voxel spacing. A scalar means isotropic spacing; a sequence
must have one entry per image axis. The value is stored in metadata for
voxel formats and used as marching-cubes spacing for STL/OBJ surfaces.
units :
Unit metadata for ``voxel_size``. Defaults to ``{"length": "voxel"}``
for plain arrays, or to the units stored on :class:`VolumeData`.
Returns
-------
pathlib.Path
Path written.
Notes
-----
Raw, NumPy, and TIFF files do not reliably carry the physical voxel spacing
needed by downstream solvers, so a JSON sidecar with suffix ``.<ext>.json``
is written next to those files.
"""
arr, spacing, resolved_units, resolved_metadata = _coerce_volume_input(
volume,
metadata=metadata,
voxel_size=voxel_size,
units=units,
)
fmt = _normalize_format(path, file_format)
out = Path(path)
out.parent.mkdir(parents=True, exist_ok=True)
if fmt in {"stl", "obj"}:
mesh = surface_mesh_from_binary_volume(arr, voxel_size=spacing)
mesh.metadata["units"] = dict(resolved_units)
mesh.metadata.update(resolved_metadata)
return save_surface_mesh(mesh, out, file_format=fmt)
if fmt == "raw":
dtype = np.dtype(
np.uint8 if arr.dtype == bool and raw_dtype is None else raw_dtype or arr.dtype
)
arr.astype(dtype, copy=False).tofile(out)
sidecar = _raw_sidecar_path(out)
sidecar.write_text(
_json_dumps(
_volume_metadata(
arr,
metadata=resolved_metadata,
voxel_size=spacing,
units=resolved_units,
stored_dtype=dtype,
)
),
encoding="utf-8",
)
return out
if fmt == "npy":
np.save(out, arr)
_volume_sidecar_path(out).write_text(
_json_dumps(
_volume_metadata(
arr,
metadata=resolved_metadata,
voxel_size=spacing,
units=resolved_units,
)
),
encoding="utf-8",
)
return out
if fmt == "h5":
with h5py.File(out, "w") as f:
f.attrs["schema_version"] = _VOLUME_SCHEMA_VERSION
f.attrs["metadata"] = _json_dumps(
_volume_metadata(
arr,
metadata=resolved_metadata,
voxel_size=spacing,
units=resolved_units,
)
)
f.create_dataset(hdf5_dataset, data=arr)
return out
if fmt == "nc":
needs_signed_storage = arr.dtype == np.dtype(bool) or arr.dtype == np.dtype("uint8")
stored = arr.astype(np.int16, copy=False) if needs_signed_storage else arr
with netcdf_file(out, "w") as f:
for axis, size in enumerate(stored.shape):
f.createDimension(f"dim_{axis}", int(size))
var = f.createVariable(
netcdf_variable, stored.dtype, tuple(f"dim_{i}" for i in range(stored.ndim))
)
var[:] = stored
f.schema_version = _VOLUME_SCHEMA_VERSION
f.metadata = _json_dumps(
_volume_metadata(
arr,
metadata=resolved_metadata,
voxel_size=spacing,
units=resolved_units,
stored_dtype=stored.dtype,
)
)
return out
if fmt == "tiff":
stored = arr.astype(np.uint8, copy=False) if arr.dtype == bool else arr
tifffile.imwrite(out, stored, photometric="minisblack")
_volume_sidecar_path(out).write_text(
_json_dumps(
_volume_metadata(
arr,
metadata=resolved_metadata,
voxel_size=spacing,
units=resolved_units,
stored_dtype=stored.dtype,
)
),
encoding="utf-8",
)
return out
raise ValueError(f"Unsupported volume format: {fmt}") # pragma: no cover - guarded above
|
load_volume(
path,
*,
file_format=None,
shape=None,
dtype=None,
hdf5_dataset="volume",
netcdf_variable="volume",
)
Load a 2D/3D image volume from raw, NumPy, HDF5, netCDF, or TIFF.
Source code in src/voids/io/volume.py
| def load_volume(
path: str | Path,
*,
file_format: str | None = None,
shape: Sequence[int] | None = None,
dtype: str | np.dtype[Any] | None = None,
hdf5_dataset: str = "volume",
netcdf_variable: str = "volume",
) -> np.ndarray:
"""Load a 2D/3D image volume from raw, NumPy, HDF5, netCDF, or TIFF."""
source = Path(path)
fmt = _normalize_format(source, file_format)
if fmt == "raw":
sidecar_metadata = _load_volume_metadata(source, fmt)
resolved_shape = tuple(int(v) for v in (shape or sidecar_metadata.get("shape", ())))
if not resolved_shape:
raise ValueError("shape is required to load raw volume without sidecar metadata")
normalize_shape(resolved_shape, allowed_ndim=(2, 3))
resolved_dtype = np.dtype(dtype or sidecar_metadata.get("stored_dtype", np.uint8))
data = np.fromfile(source, dtype=resolved_dtype)
expected = int(np.prod(np.asarray(resolved_shape, dtype=np.int64)))
if data.size != expected:
raise ValueError(f"raw file has {data.size} entries but shape requires {expected}")
return data.reshape(resolved_shape)
if fmt == "npy":
arr = np.load(source)
normalize_shape(arr.shape, allowed_ndim=(2, 3))
return np.asarray(arr)
if fmt == "h5":
with h5py.File(source, "r") as f:
arr = f[hdf5_dataset][()]
normalize_shape(arr.shape, allowed_ndim=(2, 3))
return np.asarray(arr)
if fmt == "nc":
with netcdf_file(source, "r", mmap=False) as f:
arr = np.asarray(f.variables[netcdf_variable][()]).copy()
normalize_shape(arr.shape, allowed_ndim=(2, 3))
return arr
if fmt == "tiff":
arr = np.asarray(tifffile.imread(source))
normalize_shape(arr.shape, allowed_ndim=(2, 3))
return arr
raise ValueError(f"Use load_surface_mesh for {fmt!r} files")
|
load_volume_data(
path,
*,
file_format=None,
shape=None,
dtype=None,
hdf5_dataset="volume",
netcdf_variable="volume",
voxel_size=None,
units=None,
metadata=None,
)
Load a volume together with voxel spacing, units, and metadata.
load_volume intentionally returns only the image array. Use this helper
whenever physical voxel resolution matters, especially for external TIFF,
NumPy, or raw files that may not have a reliable sidecar.
Source code in src/voids/io/volume.py
| def load_volume_data(
path: str | Path,
*,
file_format: str | None = None,
shape: Sequence[int] | None = None,
dtype: str | np.dtype[Any] | None = None,
hdf5_dataset: str = "volume",
netcdf_variable: str = "volume",
voxel_size: float | Sequence[float] | None = None,
units: dict[str, str] | None = None,
metadata: dict[str, Any] | None = None,
) -> VolumeData:
"""Load a volume together with voxel spacing, units, and metadata.
``load_volume`` intentionally returns only the image array. Use this helper
whenever physical voxel resolution matters, especially for external TIFF,
NumPy, or raw files that may not have a reliable sidecar.
"""
source = Path(path)
fmt = _normalize_format(source, file_format)
values = load_volume(
source,
file_format=fmt,
shape=shape,
dtype=dtype,
hdf5_dataset=hdf5_dataset,
netcdf_variable=netcdf_variable,
)
stored_metadata = _load_volume_metadata(
source,
fmt,
hdf5_dataset=hdf5_dataset,
netcdf_variable=netcdf_variable,
)
values = _restore_metadata_dtype(
values,
stored_metadata,
dtype_was_explicit=dtype is not None,
)
resolved_metadata = dict(stored_metadata.get("metadata", {}))
if metadata:
resolved_metadata.update(metadata)
resolved_units = dict(
units if units is not None else stored_metadata.get("units", {"length": "voxel"})
)
resolved_voxel_size = (
voxel_size if voxel_size is not None else stored_metadata.get("voxel_size", 1.0)
)
return VolumeData(
values=values,
voxel_size=resolved_voxel_size,
units=resolved_units,
metadata=resolved_metadata,
)
|
surface_mesh_from_binary_volume(
volume, *, voxel_size=1.0, level=0.5
)
Extract a triangular surface mesh from a 3D binary void image.
The surface is the interface between True void voxels and False solid
voxels, computed with marching cubes. Coordinates are scaled by
voxel_size.
Source code in src/voids/io/volume.py
| def surface_mesh_from_binary_volume(
volume: np.ndarray,
*,
voxel_size: float | Sequence[float] = 1.0,
level: float = 0.5,
) -> SurfaceMesh:
"""Extract a triangular surface mesh from a 3D binary void image.
The surface is the interface between ``True`` void voxels and ``False`` solid
voxels, computed with marching cubes. Coordinates are scaled by
``voxel_size``.
"""
mask = _binary_volume_mask(volume)
if not (np.any(mask) and np.any(~mask)):
raise ValueError("volume must contain both void and solid voxels for surface extraction")
spacing = _normalize_voxel_size(voxel_size)
vertices, faces, _normals, _values = measure.marching_cubes(
mask.astype(float),
level=float(level),
spacing=spacing,
)
return SurfaceMesh(
vertices=np.asarray(vertices, dtype=float),
faces=np.asarray(faces, dtype=np.int64),
metadata={
"schema_version": _SURFACE_SCHEMA_VERSION,
"source_kind": "binary_volume_marching_cubes",
"voxel_size": spacing,
},
)
|
save_surface_mesh(
mesh, path, *, file_format=None, voxel_size=1.0
)
Save a triangular surface mesh as ASCII STL or OBJ.
mesh can be a :class:SurfaceMesh or a 3D binary volume, in which case
marching cubes is applied first.
Source code in src/voids/io/volume.py
| def save_surface_mesh(
mesh: SurfaceMesh | np.ndarray,
path: str | Path,
*,
file_format: str | None = None,
voxel_size: float | Sequence[float] = 1.0,
) -> Path:
"""Save a triangular surface mesh as ASCII STL or OBJ.
``mesh`` can be a :class:`SurfaceMesh` or a 3D binary volume, in which case
marching cubes is applied first.
"""
out = Path(path)
out.parent.mkdir(parents=True, exist_ok=True)
fmt = _normalize_format(out, file_format)
if not isinstance(mesh, SurfaceMesh):
mesh = surface_mesh_from_binary_volume(mesh, voxel_size=voxel_size)
if fmt == "obj":
_write_obj(mesh, out)
return out
if fmt == "stl":
_write_ascii_stl(mesh, out)
return out
raise ValueError("surface meshes can only be saved as STL or OBJ")
|
load_surface_mesh(path, *, file_format=None)
Load an STL or OBJ triangular surface mesh.
Source code in src/voids/io/volume.py
| def load_surface_mesh(path: str | Path, *, file_format: str | None = None) -> SurfaceMesh:
"""Load an STL or OBJ triangular surface mesh."""
source = Path(path)
fmt = _normalize_format(source, file_format)
if fmt == "obj":
return _read_obj(source)
if fmt == "stl":
return _read_stl(source)
raise ValueError("surface meshes can only be loaded from STL or OBJ")
|
save_volume_bundle(
volume,
directory,
*,
stem="synthetic_case",
formats=("raw", "npy", "h5", "stl", "obj"),
metadata=None,
voxel_size=None,
units=None,
)
Export one synthetic case to several interchange formats.
Parameters:
| Name |
Type |
Description |
Default |
volume
|
VolumeData | ndarray
|
2D or 3D image. STL/OBJ formats require a 3D binary volume.
|
required
|
directory
|
str | Path
|
|
required
|
stem
|
str
|
Base filename without suffix.
|
'synthetic_case'
|
formats
|
Sequence[str]
|
Iterable of format labels such as ("raw", "npy", "h5", "stl", "obj").
|
('raw', 'npy', 'h5', 'stl', 'obj')
|
metadata
|
dict[str, Any] | None
|
Forwarded to :func:save_volume.
|
None
|
voxel_size
|
dict[str, Any] | None
|
Forwarded to :func:save_volume.
|
None
|
units
|
dict[str, Any] | None
|
Forwarded to :func:save_volume.
|
None
|
Source code in src/voids/io/volume.py
| def save_volume_bundle(
volume: VolumeData | np.ndarray,
directory: str | Path,
*,
stem: str = "synthetic_case",
formats: Sequence[str] = ("raw", "npy", "h5", "stl", "obj"),
metadata: dict[str, Any] | None = None,
voxel_size: float | Sequence[float] | None = None,
units: dict[str, str] | None = None,
) -> dict[str, Path]:
"""Export one synthetic case to several interchange formats.
Parameters
----------
volume :
2D or 3D image. STL/OBJ formats require a 3D binary volume.
directory :
Destination directory.
stem :
Base filename without suffix.
formats :
Iterable of format labels such as ``("raw", "npy", "h5", "stl", "obj")``.
metadata, voxel_size, units :
Forwarded to :func:`save_volume`.
"""
out_dir = Path(directory)
out_dir.mkdir(parents=True, exist_ok=True)
written: dict[str, Path] = {}
for requested in formats:
fmt = _normalize_format(f"{stem}.{requested}", requested)
suffix = _FORMAT_EXTENSIONS[fmt]
path = out_dir / f"{stem}{suffix}"
written[fmt] = save_volume(
volume,
path,
file_format=fmt,
metadata=metadata,
voxel_size=voxel_size,
units=units,
)
return written
|
