MWE 15 - External pnextract / pnflow benchmark against voids

This notebook compares voids against a committed reference dataset produced earlier with the Imperial College pnextract + pnflow workflow. The reference data now lives under examples/data/external_pnflow_benchmark/, so this notebook does not invoke pnextract or pnflow and remains runnable even if those binaries are unavailable in the future.

The committed benchmark bundle includes:

  • the exact binary input volumes used for the benchmark
  • pnflow report files (*_pnflow.prt, *_upscaled.tsv)
  • extracted-network files (*_node*.dat, *_link*.dat) for later inspection

Scientific scope and caveats: - this is an end-to-end workflow comparison, not a solver-only cross-check - any mismatch reflects both extraction differences and constitutive-model differences - the voids side is evaluated in three modes: - import the saved pnextract CNM network, enable explicit pnflow_solver_box_compat=True, and solve it with voids - re-extract the saved binary volume with snow2 and solve that network with voids - re-extract the saved binary volume with the native maximal-ball backend, using explicit external-reservoir boundary pores on the flow axis, and solve that network with voids - the external side uses previously saved pnextract geometry plus pnflow's internal single-phase model - the CNM compatibility switch is benchmark-specific and reproduces checked-in pnflow preprocessing, not a generic physical boundary rule for all imported networks - the committed input volumes make this benchmark stable against future changes in the synthetic generator implementation - we keep mu = constant here on purpose because the checked pnflow code path uses scalar fluid viscosities rather than a thermodynamic mu(P, T) coupling

from __future__ import annotations

import io
import re
from pathlib import Path

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

from voids.benchmarks import compare_network_geometry
from voids.image import (
    construct_spanning_network,
    extract_maximal_ball_regions,
    summarize_maximal_ball_extraction_diagnostics,
)
from voids.paths import data_path, project_root
from voids.physics.petrophysics import absolute_porosity, effective_porosity
from voids.physics.singlephase import (
    FluidSinglePhase,
    PressureBC,
    SinglePhaseOptions,
    solve,
)


def _render_inline_and_close_figure(fig: object) -> None:
    """Render notebook figures inline while keeping script and CI runs non-interactive."""

    get_ipython_shell = globals().get("get_ipython")
    shell = get_ipython_shell() if callable(get_ipython_shell) else None
    if shell is not None and shell.__class__.__name__ == "ZMQInteractiveShell":
        from IPython.display import Image, display

        figure_buffer = io.BytesIO()
        fig.savefig(figure_buffer, format="png", bbox_inches="tight", dpi=160)
        display(Image(data=figure_buffer.getvalue()))
    plt.close(fig)


def _require_match(pattern: str, text: str, *, label: str) -> re.Match[str]:
    match = re.search(pattern, text, flags=re.MULTILINE)
    if match is None:
        raise ValueError(f"Could not parse {label!r}")
    return match


def _parse_upscaled_metrics(path: Path, *, prefix: str) -> dict[str, float]:
    text = path.read_text()
    permeability = float(
        _require_match(
            rf"{re.escape(prefix)}_permeability:\s*([0-9.eE+-]+);",
            text,
            label=f"{prefix}_permeability",
        ).group(1)
    )
    porosity = float(
        _require_match(
            rf"{re.escape(prefix)}_porosity:\s*([0-9.eE+-]+);",
            text,
            label=f"{prefix}_porosity",
        ).group(1)
    )
    formation_factor = float(
        _require_match(
            rf"{re.escape(prefix)}_formationfactor:\s*([0-9.eE+-]+);",
            text,
            label=f"{prefix}_formationfactor",
        ).group(1)
    )
    return {
        "k_pnflow": permeability,
        "phi_pnflow": porosity,
        "formation_factor_pnflow": formation_factor,
    }


def _parse_pnflow_prt(path: Path) -> dict[str, float | int]:
    text = path.read_text()
    int_patterns = {
        "pnflow_n_pores": r"Number of pores:\s+([0-9]+)",
        "pnflow_n_throats": r"Number of throats:\s+([0-9]+)",
        "pnflow_n_inlet_connections": r"Number of inlet connections:\s+([0-9]+)",
        "pnflow_n_outlet_connections": r"Number of outlet connections:\s+([0-9]+)",
        "pnflow_n_isolated_elements": r"Number of isolated elements:\s+([0-9]+)",
    }
    float_patterns = {
        "phi_pnflow_prt": r"Total porosity:\s+([0-9.eE+-]+)",
        "k_pnflow_prt": r"Absolute permeability:\s+([0-9.eE+-]+)",
    }
    parsed: dict[str, float | int] = {}
    for key, pattern in int_patterns.items():
        value = _require_match(pattern, text, label=key).group(1)
        parsed[key] = int(value)
    for key, pattern in float_patterns.items():
        value = _require_match(pattern, text, label=key).group(1)
        parsed[key] = float(value)
    return parsed


def _load_reference_case(
    reference_root: Path, row: pd.Series
) -> tuple[np.ndarray, dict[str, object]]:
    case = str(row["case"])
    volume = np.load(reference_root / str(row["volume_file"]))
    prt_path = reference_root / str(row["pnflow_prt_file"])
    upscaled_path = reference_root / str(row["pnflow_upscaled_file"])
    metrics: dict[str, object] = {
        **_parse_upscaled_metrics(upscaled_path, prefix=case),
        **_parse_pnflow_prt(prt_path),
        "reference_case_dir": str((reference_root / case).relative_to(project_root())),
    }
    return np.asarray(volume, dtype=bool), metrics


def _construct_voids_from_volume_case(
    volume: np.ndarray,
    *,
    voxel_size: float,
    flow_axis: str,
    backend: str,
    extraction_kwargs: dict[str, object] | None = None,
) -> object:
    return construct_spanning_network(
        backend=backend,
        phases=volume.astype(int),
        voxel_size=voxel_size,
        flow_axis=flow_axis,
        extraction_kwargs=extraction_kwargs,
        provenance_notes={"benchmark_kind": "external_pnflow_reference"},
    )


def _summarize_voids_construction_transport(
    construction: object,
    *,
    flow_axis: str,
    fluid: FluidSinglePhase,
    options: SinglePhaseOptions,
    metric_prefix: str,
) -> dict[str, float | int]:
    image = getattr(construction, "image", None)
    if image is None:
        raise ValueError(
            "Image-based construction is required for volume transport summary"
        )
    bc = PressureBC(
        f"inlet_{flow_axis}min",
        f"outlet_{flow_axis}max",
        pin=2.0e5,
        pout=0.0,
    )
    result = solve(
        construction.net,
        fluid=fluid,
        bc=bc,
        axis=flow_axis,
        options=options,
    )
    helper_pore_mask = _flow_reservoir_helper_pore_mask(
        construction.net, flow_axis=flow_axis
    )
    return {
        "phi_image": float(np.asarray(image, dtype=bool).mean()),
        f"phi_abs_{metric_prefix}_voids": float(absolute_porosity(construction.net)),
        f"phi_eff_{metric_prefix}_voids": float(
            effective_porosity(construction.net, axis=flow_axis)
        ),
        f"Np_{metric_prefix}_voids": int(construction.net.Np),
        f"Np_{metric_prefix}_physical_voids": int(
            construction.net.Np - np.count_nonzero(helper_pore_mask)
        ),
        f"Np_{metric_prefix}_reservoir_helper_voids": int(
            np.count_nonzero(helper_pore_mask)
        ),
        f"Nt_{metric_prefix}_voids": int(construction.net.Nt),
        f"k_{metric_prefix}_voids": float(result.permeability[flow_axis]),
        f"Q_{metric_prefix}_voids": float(result.total_flow_rate),
    }


def _construct_voids_on_imported_cnm_case(
    prefix: Path,
    *,
    flow_axis: str,
) -> object:
    return construct_spanning_network(
        backend="pnflow_cnm",
        pnflow_cnm_prefix=prefix,
        pnflow_solver_box_compat=True,
        flow_axis=flow_axis,
        provenance_notes={"benchmark_kind": "external_pnflow_reference"},
    )


def _summarize_imported_cnm_transport(
    construction: object,
    *,
    flow_axis: str,
    fluid: FluidSinglePhase,
    options: SinglePhaseOptions,
) -> dict[str, float | int]:
    bc = PressureBC(
        f"inlet_{flow_axis}min",
        f"outlet_{flow_axis}max",
        pin=2.0e5,
        pout=0.0,
    )
    result = solve(
        construction.net,
        fluid=fluid,
        bc=bc,
        axis=flow_axis,
        options=options,
    )
    return {
        "phi_abs_imported_voids": float(absolute_porosity(construction.net)),
        "phi_eff_imported_voids": float(
            effective_porosity(construction.net, axis=flow_axis)
        ),
        "Np_imported_physical": int(construction.backend_details["n_physical_pores"]),
        "Np_imported_total": int(construction.net.Np),
        "Np_imported_boundary_mirror": int(
            construction.backend_details["n_boundary_mirror_pores"]
        ),
        "Nt_imported_voids": int(construction.net.Nt),
        "k_imported_voids": float(result.permeability[flow_axis]),
        "Q_imported_voids": float(result.total_flow_rate),
    }


def _geometry_comparison_metrics(
    imported_construction: object,
    candidate_construction: object,
    *,
    flow_axis: str,
    candidate_name: str,
) -> dict[str, float | int]:
    imported_full_net = imported_construction.net_full
    n_physical_pores = int(imported_construction.backend_details["n_physical_pores"])
    imported_physical_mask = (
        np.arange(imported_full_net.Np, dtype=np.int64) < n_physical_pores
    )
    candidate_helper_mask = _flow_reservoir_helper_pore_mask(
        candidate_construction.net_full,
        flow_axis=flow_axis,
    )
    candidate_physical_mask = (
        ~candidate_helper_mask if np.any(candidate_helper_mask) else None
    )
    comparison = compare_network_geometry(
        imported_full_net,
        candidate_construction.net_full,
        axis=flow_axis,
        reference_pore_mask=imported_physical_mask,
        candidate_pore_mask=candidate_physical_mask,
        reference_name="imported_physical",
        candidate_name=candidate_name,
    )
    return {
        f"{candidate_name}_geom_pore_count_rel_diff": float(
            comparison.pore_count_rel_diff
        ),
        f"{candidate_name}_geom_throat_count_rel_diff": float(
            comparison.throat_count_rel_diff
        ),
        f"{candidate_name}_geom_mean_coordination_rel_diff": float(
            comparison.mean_coordination_rel_diff
        ),
        f"{candidate_name}_geom_pore_radius_ks": float(comparison.pore_radius_ks),
        f"{candidate_name}_geom_throat_radius_ks": float(comparison.throat_radius_ks),
        f"{candidate_name}_geom_throat_area_ks": float(comparison.throat_area_ks),
        f"{candidate_name}_geom_throat_length_ks": float(comparison.throat_length_ks),
        f"{candidate_name}_geom_throat_core_length_ks": float(
            comparison.throat_core_length_ks
        ),
        f"{candidate_name}_geom_coordination_ks": float(comparison.coordination_ks),
        f"{candidate_name}_geom_throat_face_count_ks": float(
            comparison.throat_face_count_ks
        ),
        f"{candidate_name}_geom_n_components": int(
            comparison.candidate_summary.n_components
        ),
        f"{candidate_name}_geom_dead_end_fraction": float(
            comparison.candidate_summary.dead_end_fraction
        ),
        f"{candidate_name}_geom_overlap_boundary_count": int(
            comparison.candidate_summary.overlapping_boundary_count
        ),
        f"{candidate_name}_geom_support_radius_mean": float(
            comparison.candidate_summary.throat_support_radius_mean
        ),
    }


def _flow_reservoir_helper_pore_mask(net: object, *, flow_axis: str) -> np.ndarray:
    """Return helper reservoir pores, if the extraction backend created them."""

    pore_count = int(getattr(net, "Np"))
    pore_labels = getattr(net, "pore_labels", {})
    helper_mask = np.zeros(pore_count, dtype=bool)
    for side_name in ("min", "max"):
        connected_key = (
            f"boundary_connected_inlet_{flow_axis}{side_name}"
            if side_name == "min"
            else f"boundary_connected_outlet_{flow_axis}{side_name}"
        )
        helper_key = (
            f"inlet_{flow_axis}{side_name}"
            if side_name == "min"
            else f"outlet_{flow_axis}{side_name}"
        )
        if connected_key in pore_labels and helper_key in pore_labels:
            helper_mask |= np.asarray(pore_labels[helper_key], dtype=bool)
    return helper_mask


def _maximal_ball_step_diagnostics_metrics(
    volume: np.ndarray,
    *,
    distance_map_backend: str,
) -> dict[str, float | int]:
    """Summarize native maximal-ball extraction stages for per-case benchmarking."""

    extraction_result = extract_maximal_ball_regions(
        volume,
        distance_map_backend=distance_map_backend,
    )
    diagnostics = summarize_maximal_ball_extraction_diagnostics(
        volume,
        extraction_result,
    )
    return {
        "maxball_diag_retained_ball_count": int(diagnostics.retained_ball_count),
        "maxball_diag_root_region_count": int(diagnostics.root_region_count),
        "maxball_diag_occupied_region_count": int(diagnostics.occupied_region_count),
        "maxball_diag_assigned_void_fraction": float(
            diagnostics.assigned_void_fraction
        ),
        "maxball_diag_unassigned_void_voxel_count": int(
            diagnostics.unassigned_void_voxel_count
        ),
        "maxball_diag_zero_throat_region_count": int(
            diagnostics.zero_throat_region_count
        ),
        "maxball_diag_internal_zero_throat_region_count": int(
            diagnostics.internal_zero_throat_region_count
        ),
        "maxball_diag_boundary_zero_throat_region_count": int(
            diagnostics.boundary_zero_throat_region_count
        ),
        "maxball_diag_touch_radius_side1_mean_voxels": float(
            diagnostics.throat_touch_radius_side1_mean_voxels
        ),
        "maxball_diag_touch_radius_side2_mean_voxels": float(
            diagnostics.throat_touch_radius_side2_mean_voxels
        ),
        "maxball_diag_refined_support_radius_side1_mean_voxels": float(
            diagnostics.throat_refined_support_radius_side1_mean_voxels
        ),
        "maxball_diag_refined_support_radius_side2_mean_voxels": float(
            diagnostics.throat_refined_support_radius_side2_mean_voxels
        ),
    }

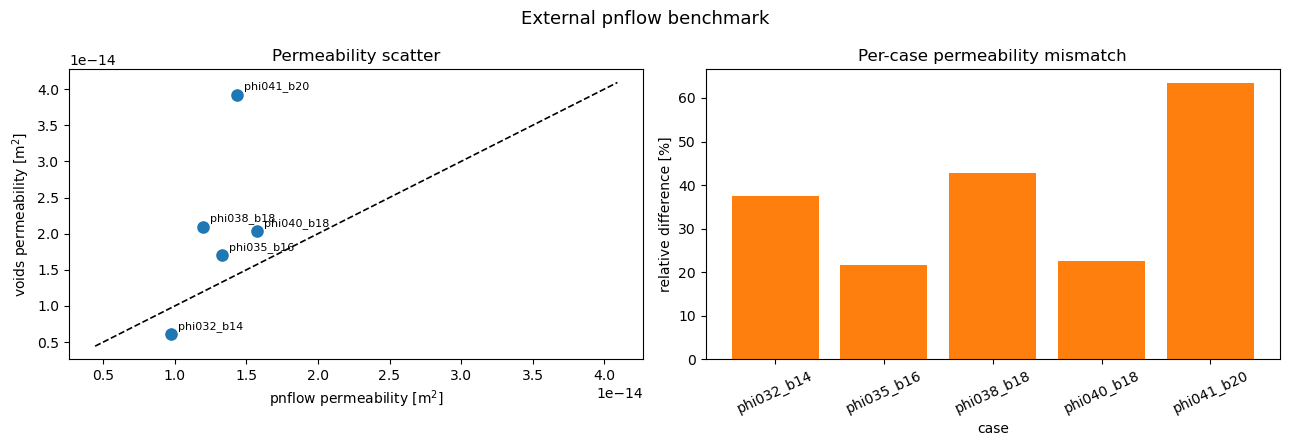

def _make_permeability_comparison_figure(
    summary_frame: pd.DataFrame,
    *,
    output_path: Path,
) -> None:
    fig, axes = plt.subplots(1, 2, figsize=(13, 4.5))

    kmin = float(
        min(
            summary_frame["k_imported_voids"].min(),
            summary_frame["k_porespy_voids"].min(),
            summary_frame["k_maxball_voids"].min(),
            summary_frame["k_pnflow"].min(),
        )
    )
    kmax = float(
        max(
            summary_frame["k_imported_voids"].max(),
            summary_frame["k_porespy_voids"].max(),
            summary_frame["k_maxball_voids"].max(),
            summary_frame["k_pnflow"].max(),
        )
    )
    pad = 0.05 * max(kmax - kmin, 1.0e-30)

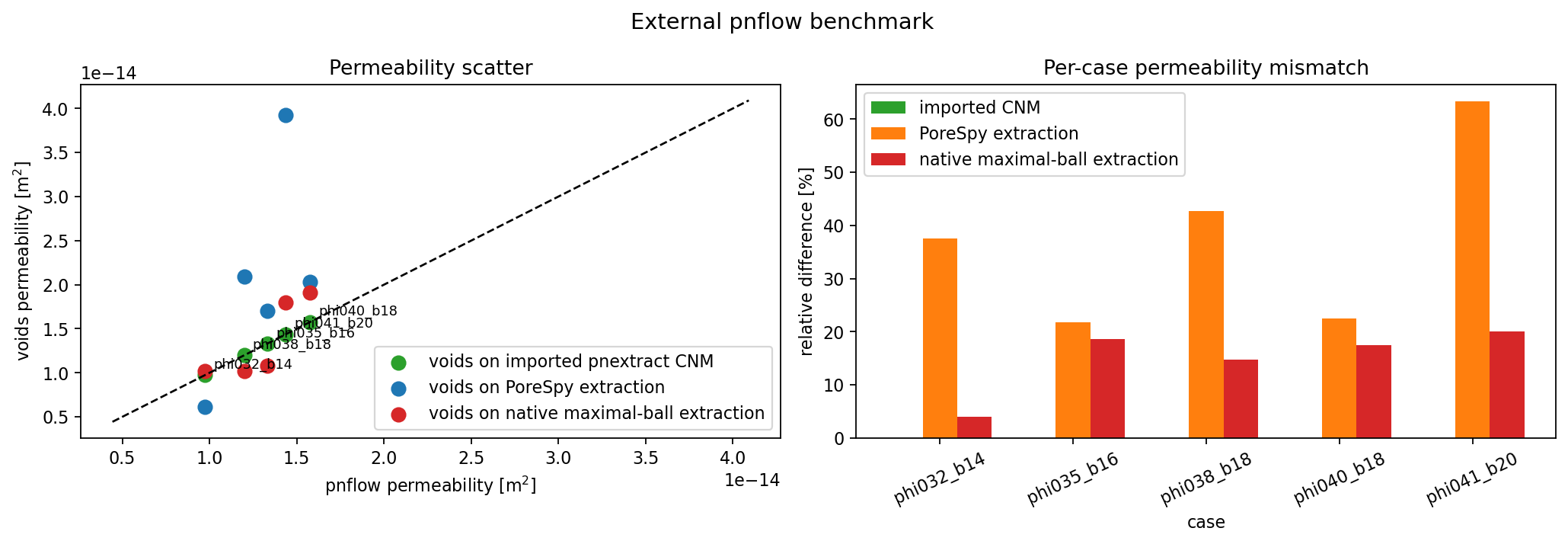

    axes[0].scatter(
        summary_frame["k_pnflow"],
        summary_frame["k_imported_voids"],
        s=65,
        color="tab:green",
        label="voids on imported pnextract CNM",
    )
    axes[0].scatter(
        summary_frame["k_pnflow"],
        summary_frame["k_porespy_voids"],
        s=65,
        color="tab:blue",
        label="voids on PoreSpy extraction",
    )
    axes[0].scatter(
        summary_frame["k_pnflow"],
        summary_frame["k_maxball_voids"],
        s=65,
        color="tab:red",
        label="voids on native maximal-ball extraction",
    )
    axes[0].plot(
        [kmin - pad, kmax + pad],
        [kmin - pad, kmax + pad],
        color="black",
        lw=1.2,
        linestyle="--",
    )
    for row in summary_frame.itertuples(index=False):
        axes[0].annotate(
            row.case,
            (row.k_pnflow, row.k_imported_voids),
            textcoords="offset points",
            xytext=(5, 4),
            fontsize=8,
        )
    axes[0].set_xlabel("pnflow permeability [m$^2$]")
    axes[0].set_ylabel("voids permeability [m$^2$]")
    axes[0].set_title("Permeability scatter")
    axes[0].legend()

    x = np.arange(len(summary_frame))
    width = 0.26
    axes[1].bar(
        x - width,
        100.0 * summary_frame["k_rel_diff_imported"],
        width=width,
        color="tab:green",
        label="imported CNM",
    )
    axes[1].bar(
        x,
        100.0 * summary_frame["k_rel_diff_porespy"],
        width=width,
        color="tab:orange",
        label="PoreSpy extraction",
    )
    axes[1].bar(
        x + width,
        100.0 * summary_frame["k_rel_diff_maxball"],
        width=width,
        color="tab:red",
        label="native maximal-ball extraction",
    )
    axes[1].set_xticks(x, summary_frame["case"], rotation=25)
    axes[1].set_xlabel("case")
    axes[1].set_ylabel("relative difference [%]")
    axes[1].set_title("Per-case permeability mismatch")
    axes[1].legend()

    fig.suptitle("External pnflow benchmark", fontsize=13)
    plt.tight_layout()
    fig.savefig(output_path, dpi=160, bbox_inches="tight")
    _render_inline_and_close_figure(fig)

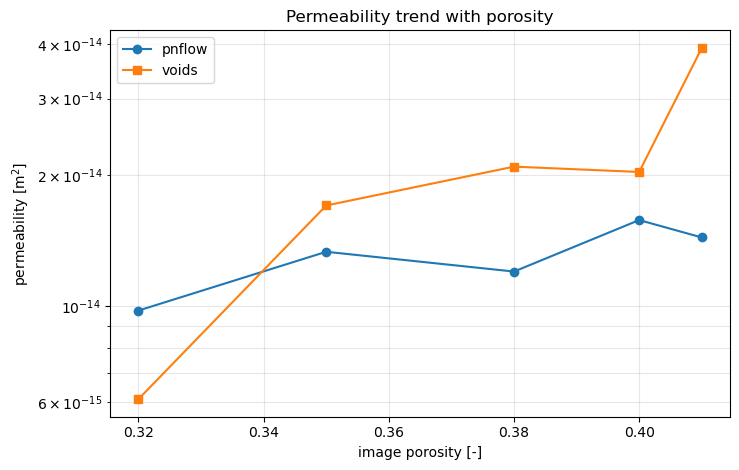

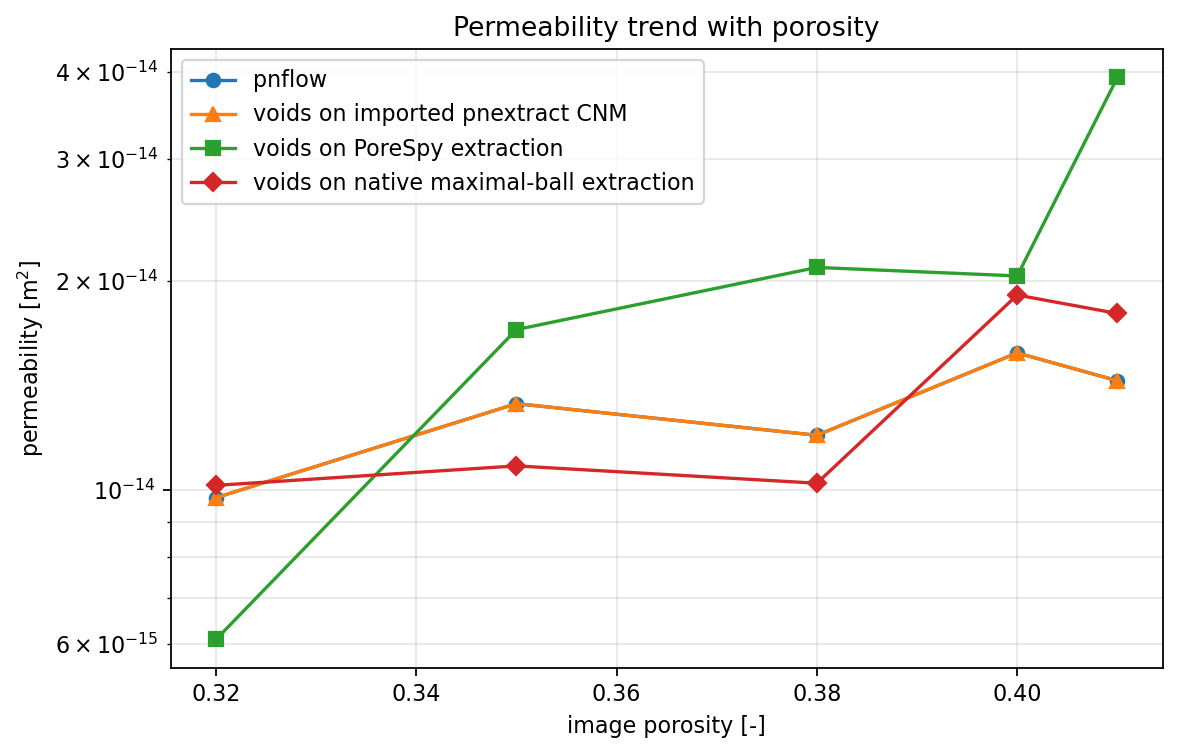

def _make_porosity_trend_figure(
    summary_frame: pd.DataFrame,
    *,
    output_path: Path,
) -> None:
    plot_df = summary_frame.sort_values(["phi_image", "blobiness"]).copy()
    fig, ax = plt.subplots(figsize=(7.5, 4.8))

    ax.semilogy(
        plot_df["phi_image"],
        plot_df["k_pnflow"],
        marker="o",
        lw=1.5,
        label="pnflow",
    )
    ax.semilogy(
        plot_df["phi_image"],
        plot_df["k_imported_voids"],
        marker="^",
        lw=1.5,
        label="voids on imported pnextract CNM",
    )
    ax.semilogy(
        plot_df["phi_image"],
        plot_df["k_porespy_voids"],
        marker="s",
        lw=1.5,
        label="voids on PoreSpy extraction",
    )
    ax.semilogy(
        plot_df["phi_image"],
        plot_df["k_maxball_voids"],
        marker="D",
        lw=1.5,
        label="voids on native maximal-ball extraction",
    )
    ax.set_xlabel("image porosity [-]")
    ax.set_ylabel("permeability [m$^2$]")
    ax.set_title("Permeability trend with porosity")
    ax.grid(True, which="both", alpha=0.3)
    ax.legend()

    plt.tight_layout()
    fig.savefig(output_path, dpi=160, bbox_inches="tight")
    _render_inline_and_close_figure(fig)


examples_data = data_path()
reference_root = examples_data / "external_pnflow_benchmark"
manifest_path = reference_root / "manifest.csv"
report_dir = project_root() / "docs" / "assets" / "verification"
report_dir.mkdir(parents=True, exist_ok=True)
report_csv = report_dir / "pnflow_5_case_results.csv"
maxball_diagnostics_csv = report_dir / "pnflow_maxball_step_diagnostics.csv"
comparison_figure_path = report_dir / "pnflow_permeability_scatter_and_error.png"
porosity_figure_path = report_dir / "pnflow_porosity_vs_permeability.png"

if not manifest_path.exists():
    raise FileNotFoundError(
        "Committed reference data not found. Expected " f"{manifest_path} to exist."
    )

fluid = FluidSinglePhase(viscosity=1.0e-3)
options = SinglePhaseOptions(
    conductance_model="valvatne_blunt",
    solver="direct",
)
manifest_df = pd.read_csv(manifest_path)

Reference dataset provenance

The table below is the committed benchmark manifest. The notebook loads the exact saved volumes and previously generated pnflow reports from examples/data/external_pnflow_benchmark/.

manifest_df
case shape porosity_target blobiness seed_start seed_used flow_axis voxel_size_m volume_file pnflow_prt_file pnflow_upscaled_file
0 phi032_b14 32x32x32 0.32 1.4 401 401 x 0.000002 phi032_b14/void_volume.npy phi032_b14/phi032_b14_pnflow.prt phi032_b14/phi032_b14_upscaled.tsv
1 phi035_b16 32x32x32 0.35 1.6 501 501 x 0.000002 phi035_b16/void_volume.npy phi035_b16/phi035_b16_pnflow.prt phi035_b16/phi035_b16_upscaled.tsv
2 phi038_b18 32x32x32 0.38 1.8 601 601 x 0.000002 phi038_b18/void_volume.npy phi038_b18/phi038_b18_pnflow.prt phi038_b18/phi038_b18_upscaled.tsv
3 phi040_b18 32x32x32 0.40 1.8 901 901 x 0.000002 phi040_b18/void_volume.npy phi040_b18/phi040_b18_pnflow.prt phi040_b18/phi040_b18_upscaled.tsv
4 phi041_b20 32x32x32 0.41 2.0 701 701 x 0.000002 phi041_b20/void_volume.npy phi041_b20/phi041_b20_pnflow.prt phi041_b20/phi041_b20_upscaled.tsv

Representative benchmark input

The committed input volumes are binary segmented images (True = void) that were used in the original external pnextract / pnflow run.

representative_row = manifest_df.loc[manifest_df["case"] == "phi038_b18"].iloc[0]
representative_volume = np.load(
    reference_root / representative_row["volume_file"]
).astype(bool)
mid = representative_volume.shape[0] // 2

fig, axes = plt.subplots(1, 3, figsize=(15, 4))
axes[0].imshow(representative_volume[mid, :, :], cmap="gray", origin="lower")
axes[0].set_title("YZ slice")
axes[0].set_xlabel("z")
axes[0].set_ylabel("y")

axes[1].imshow(representative_volume[:, mid, :], cmap="gray", origin="lower")
axes[1].set_title("XZ slice")
axes[1].set_xlabel("z")
axes[1].set_ylabel("x")

axes[2].imshow(representative_volume[:, :, mid], cmap="gray", origin="lower")
axes[2].set_title("XY slice")
axes[2].set_xlabel("y")
axes[2].set_ylabel("x")

fig.suptitle(
    f"Representative committed input: {representative_row['case']}", fontsize=13
)
plt.tight_layout()
_render_inline_and_close_figure(fig)

print("shape =", representative_volume.shape)
print("void fraction =", float(representative_volume.mean()))

png

shape = (32, 32, 32)
void fraction = 0.3800048828125

Run voids against the committed external references

For each case, the notebook loads the saved external outputs and then evaluates three voids pathways:

  • imported CNM: reuse the saved pnextract network and compare the voids single-phase solve directly against pnflow
  • image extraction with snow2: re-extract the saved binary volume with the current voids snow2 workflow and compare that full path against pnflow
  • image extraction with native maximal-ball: run the current voids maximal-ball path with explicit external-reservoir boundary pores and compare that full path against pnflow

This split helps identify whether a mismatch is dominated by extraction or by the single-phase solver/geometry interpretation on the same network.

rows: list[dict[str, object]] = []

for row in manifest_df.itertuples(index=False):
    row_series = pd.Series(row._asdict())
    volume, pnflow_metrics = _load_reference_case(reference_root, row_series)
    case_root = reference_root / str(row_series["case"])
    imported_construction = _construct_voids_on_imported_cnm_case(
        case_root / str(row_series["case"]),
        flow_axis=str(row_series["flow_axis"]),
    )
    imported_metrics = _summarize_imported_cnm_transport(
        imported_construction,
        flow_axis=str(row_series["flow_axis"]),
        fluid=fluid,
        options=options,
    )
    porespy_construction = _construct_voids_from_volume_case(
        volume,
        voxel_size=float(row_series["voxel_size_m"]),
        flow_axis=str(row_series["flow_axis"]),
        backend="porespy",
    )
    porespy_metrics = _summarize_voids_construction_transport(
        porespy_construction,
        flow_axis=str(row_series["flow_axis"]),
        fluid=fluid,
        options=options,
        metric_prefix="porespy",
    )
    maxball_construction = _construct_voids_from_volume_case(
        volume,
        voxel_size=float(row_series["voxel_size_m"]),
        flow_axis=str(row_series["flow_axis"]),
        backend="native_maximal_ball",
        extraction_kwargs={
            "distance_map_backend": "scipy",
            "flow_boundary_mode": "external_reservoir",
        },
    )
    maxball_metrics = _summarize_voids_construction_transport(
        maxball_construction,
        flow_axis=str(row_series["flow_axis"]),
        fluid=fluid,
        options=options,
        metric_prefix="maxball",
    )
    porespy_geometry_metrics = _geometry_comparison_metrics(
        imported_construction,
        porespy_construction,
        flow_axis=str(row_series["flow_axis"]),
        candidate_name="porespy",
    )
    maxball_geometry_metrics = _geometry_comparison_metrics(
        imported_construction,
        maxball_construction,
        flow_axis=str(row_series["flow_axis"]),
        candidate_name="maxball",
    )
    maxball_step_diagnostics = _maximal_ball_step_diagnostics_metrics(
        volume,
        distance_map_backend="scipy",
    )
    rows.append(
        {
            **row._asdict(),
            **pnflow_metrics,
            **imported_metrics,
            **porespy_metrics,
            **maxball_metrics,
            **porespy_geometry_metrics,
            **maxball_geometry_metrics,
            **maxball_step_diagnostics,
        }
    )

summary_df = pd.DataFrame(rows)
summary_df["k_ratio_imported_to_pnflow"] = (
    summary_df["k_imported_voids"] / summary_df["k_pnflow"]
)
summary_df["k_ratio_porespy_to_pnflow"] = (
    summary_df["k_porespy_voids"] / summary_df["k_pnflow"]
)
summary_df["k_ratio_maxball_to_pnflow"] = (
    summary_df["k_maxball_voids"] / summary_df["k_pnflow"]
)
summary_df["k_rel_diff_imported"] = np.abs(
    summary_df["k_imported_voids"] - summary_df["k_pnflow"]
) / np.maximum(
    np.maximum(np.abs(summary_df["k_imported_voids"]), np.abs(summary_df["k_pnflow"])),
    1.0e-30,
)
summary_df["k_rel_diff_porespy"] = np.abs(
    summary_df["k_porespy_voids"] - summary_df["k_pnflow"]
) / np.maximum(
    np.maximum(np.abs(summary_df["k_porespy_voids"]), np.abs(summary_df["k_pnflow"])),
    1.0e-30,
)
summary_df["k_rel_diff_maxball"] = np.abs(
    summary_df["k_maxball_voids"] - summary_df["k_pnflow"]
) / np.maximum(
    np.maximum(np.abs(summary_df["k_maxball_voids"]), np.abs(summary_df["k_pnflow"])),
    1.0e-30,
)
summary_df["phi_abs_diff_imported"] = (
    summary_df["phi_abs_imported_voids"] - summary_df["phi_pnflow"]
)
summary_df["phi_abs_diff_porespy"] = (
    summary_df["phi_abs_porespy_voids"] - summary_df["phi_pnflow"]
)
summary_df["phi_abs_diff_maxball"] = (
    summary_df["phi_abs_maxball_voids"] - summary_df["phi_pnflow"]
)
summary_df["np_rel_diff_imported"] = np.abs(
    summary_df["Np_imported_physical"] - summary_df["pnflow_n_pores"]
) / np.maximum(summary_df["pnflow_n_pores"], 1.0)
summary_df["np_rel_diff_porespy"] = np.abs(
    summary_df["Np_porespy_physical_voids"] - summary_df["pnflow_n_pores"]
) / np.maximum(summary_df["pnflow_n_pores"], 1.0)
summary_df["nt_rel_diff_imported"] = np.abs(
    summary_df["Nt_imported_voids"] - summary_df["pnflow_n_throats"]
) / np.maximum(summary_df["pnflow_n_throats"], 1.0)
summary_df["nt_rel_diff_porespy"] = np.abs(
    summary_df["Nt_porespy_voids"] - summary_df["pnflow_n_throats"]
) / np.maximum(summary_df["pnflow_n_throats"], 1.0)
summary_df["np_rel_diff_maxball"] = np.abs(
    summary_df["Np_maxball_physical_voids"] - summary_df["pnflow_n_pores"]
) / np.maximum(summary_df["pnflow_n_pores"], 1.0)
summary_df["nt_rel_diff_maxball"] = np.abs(
    summary_df["Nt_maxball_voids"] - summary_df["pnflow_n_throats"]
) / np.maximum(summary_df["pnflow_n_throats"], 1.0)

display_columns = [
    "case",
    "seed_used",
    "porosity_target",
    "blobiness",
    "phi_image",
    "phi_abs_imported_voids",
    "phi_abs_porespy_voids",
    "phi_abs_maxball_voids",
    "phi_pnflow",
    "Np_imported_physical",
    "Np_porespy_physical_voids",
    "Np_porespy_reservoir_helper_voids",
    "Np_porespy_voids",
    "Np_maxball_physical_voids",
    "Np_maxball_reservoir_helper_voids",
    "Np_maxball_voids",
    "pnflow_n_pores",
    "Nt_imported_voids",
    "Nt_porespy_voids",
    "Nt_maxball_voids",
    "pnflow_n_throats",
    "k_imported_voids",
    "k_porespy_voids",
    "k_maxball_voids",
    "k_pnflow",
    "k_rel_diff_imported",
    "k_rel_diff_porespy",
    "k_rel_diff_maxball",
    "porespy_geom_pore_count_rel_diff",
    "porespy_geom_throat_count_rel_diff",
    "porespy_geom_throat_radius_ks",
    "porespy_geom_coordination_ks",
    "porespy_geom_n_components",
    "maxball_geom_pore_count_rel_diff",
    "maxball_geom_throat_count_rel_diff",
    "maxball_geom_throat_radius_ks",
    "maxball_geom_coordination_ks",
    "maxball_geom_n_components",
    "maxball_geom_dead_end_fraction",
    "maxball_diag_assigned_void_fraction",
    "maxball_diag_unassigned_void_voxel_count",
    "maxball_diag_zero_throat_region_count",
    "maxball_diag_internal_zero_throat_region_count",
]
summary_df.loc[:, display_columns]
case seed_used porosity_target blobiness phi_image phi_abs_imported_voids phi_abs_porespy_voids phi_abs_maxball_voids phi_pnflow Np_imported_physical ... maxball_geom_pore_count_rel_diff maxball_geom_throat_count_rel_diff maxball_geom_throat_radius_ks maxball_geom_coordination_ks maxball_geom_n_components maxball_geom_dead_end_fraction maxball_diag_assigned_void_fraction maxball_diag_unassigned_void_voxel_count maxball_diag_zero_throat_region_count maxball_diag_internal_zero_throat_region_count
0 phi032_b14 401 0.32 1.4 0.320007 0.276611 0.320190 0.280884 0.275787 80 ... 0.024390 0.029412 0.806061 0.072561 3 0.121951 0.910357 940 1 0
1 phi035_b16 501 0.35 1.6 0.350006 0.297089 0.349762 0.311859 0.295502 71 ... 0.014085 0.029940 0.814371 0.053521 1 0.100000 0.891011 1250 0 0
2 phi038_b18 601 0.38 1.8 0.380005 0.322083 0.380005 0.336761 0.316315 64 ... 0.072464 0.058065 0.835616 0.068388 2 0.072464 0.887006 1407 1 0
3 phi040_b18 901 0.40 1.8 0.399994 0.346832 0.399994 0.365234 0.343414 83 ... 0.011905 0.020000 0.897959 0.068273 2 0.071429 0.915618 1106 0 0
4 phi041_b20 701 0.41 2.0 0.410004 0.354492 0.410004 0.369812 0.354004 72 ... 0.013889 0.027778 0.879630 0.067097 2 0.000000 0.904429 1284 1 0

5 rows × 43 columns

diagnostic_summary_columns = [
    "k_rel_diff_imported",
    "k_rel_diff_porespy",
    "k_rel_diff_maxball",
    "porespy_geom_pore_count_rel_diff",
    "porespy_geom_throat_count_rel_diff",
    "porespy_geom_coordination_ks",
    "porespy_geom_n_components",
    "maxball_geom_pore_count_rel_diff",
    "maxball_geom_throat_count_rel_diff",
    "maxball_geom_throat_radius_ks",
    "maxball_geom_coordination_ks",
    "maxball_geom_n_components",
    "maxball_geom_dead_end_fraction",
    "maxball_diag_assigned_void_fraction",
    "maxball_diag_zero_throat_region_count",
    "maxball_diag_internal_zero_throat_region_count",
]
summary_df.loc[:, diagnostic_summary_columns].mean(numeric_only=True).to_frame(
    name="mean_over_cases"
)
mean_over_cases
k_rel_diff_imported 0.000001
k_rel_diff_porespy 0.375629
k_rel_diff_maxball 0.149495
porespy_geom_pore_count_rel_diff 0.467732
porespy_geom_throat_count_rel_diff 0.370830
porespy_geom_coordination_ks 0.221289
porespy_geom_n_components 1.200000
maxball_geom_pore_count_rel_diff 0.027346
maxball_geom_throat_count_rel_diff 0.033039
maxball_geom_throat_radius_ks 0.846727
maxball_geom_coordination_ks 0.065968
maxball_geom_n_components 2.000000
maxball_geom_dead_end_fraction 0.073169
maxball_diag_assigned_void_fraction 0.901684
maxball_diag_zero_throat_region_count 0.600000
maxball_diag_internal_zero_throat_region_count 0.000000

Save derived comparison artifacts

The committed external reference data under examples/data/ are treated as inputs. The CSV and figures written here remain derived benchmark reports for documentation and review.

summary_df.to_csv(report_csv, index=False)
print("Saved:", report_csv)

Saved: /Users/dtvolpatto/Work/voids/docs/assets/verification/pnflow_5_case_results.csv

maxball_step_diagnostic_columns = [
    "case",
    "maxball_diag_retained_ball_count",
    "maxball_diag_root_region_count",
    "maxball_diag_occupied_region_count",
    "maxball_diag_assigned_void_fraction",
    "maxball_diag_unassigned_void_voxel_count",
    "maxball_diag_zero_throat_region_count",
    "maxball_diag_internal_zero_throat_region_count",
    "maxball_diag_boundary_zero_throat_region_count",
    "maxball_diag_touch_radius_side1_mean_voxels",
    "maxball_diag_touch_radius_side2_mean_voxels",
    "maxball_diag_refined_support_radius_side1_mean_voxels",
    "maxball_diag_refined_support_radius_side2_mean_voxels",
]
summary_df.loc[:, maxball_step_diagnostic_columns].to_csv(
    maxball_diagnostics_csv,
    index=False,
)
print("Saved:", maxball_diagnostics_csv)

Saved: /Users/dtvolpatto/Work/voids/docs/assets/verification/pnflow_maxball_step_diagnostics.csv

_make_permeability_comparison_figure(
    summary_df,
    output_path=comparison_figure_path,
)
print("Saved:", comparison_figure_path)

png

Saved: /Users/dtvolpatto/Work/voids/docs/assets/verification/pnflow_permeability_scatter_and_error.png

_make_porosity_trend_figure(
    summary_df,
    output_path=porosity_figure_path,
)
print("Saved:", porosity_figure_path)

png

Saved: /Users/dtvolpatto/Work/voids/docs/assets/verification/pnflow_porosity_vs_permeability.png

Interpretation

The permeability comparison is the main benchmark output. The porosity and network-size columns help diagnose whether a mismatch comes primarily from extraction topology, pore/throat geometry, or the transport model itself. The added geometry columns compare each voids extraction against the imported physical pnextract CNM rather than only against the final pnflow permeability.

Points to keep in mind when interpreting the numbers: - pnflow reports porosity after its own extracted-network construction, not the binary-image void fraction - imported-CNM and PoreSpy-extracted voids porosities are not identical diagnostics: the imported CNM includes the saved pnextract conduit volumes, while the PoreSpy path uses the current voids extraction and pruning workflow - if imported-CNM permeability is much closer to pnflow than both image-extraction paths, the dominant remaining mismatch is likely extraction rather than the single-phase solver itself - large throat-count relative error, large throat-radius KS distance, or many disconnected components in the candidate extraction are stronger evidence of topology/ownership mismatch than of a boundary-condition or transport-model issue - at the current stage, the native maximal-ball path should be treated as a topology diagnostic: it now uses explicit external-reservoir boundary pores on the flow axis and is closer than snow2 on mean permeability error for this five-case set; after excluding helper reservoir pores from geometry diagnostics, the residual mismatch is more concentrated in conduit area/shape-factor and boundary-reservoir reduction than in physical pore/throat counts - a close permeability match on the imported CNM is encouraging, but it still does not prove full geometric equivalence between implementations - a large mismatch is not automatically a bug in voids; it may reflect different extraction and conductance assumptions in the two workflows
