DRP-317 Kirby Notebook Report¶
Notebook: 26_mwe_drp317_kirby_raw_porosity_perm
Sources¶
- Dataset: Neumann, R., ANDREETA, M., Lucas-Oliveira, E. (2020, October 7). 11 Sandstones: raw, filtered and segmented data [Dataset]. Digital Porous Media Portal. https://www.doi.org/10.17612/f4h1-w124
- Experimental reference paper: Neumann, R. F., Barsi-Andreeta, M., Lucas-Oliveira, E., Barbalho, H., Trevizan, W. A., Bonagamba, T. J., & Steiner, M. B. (2021). High accuracy capillary network representation in digital rock reveals permeability scaling functions. Scientific Reports, 11, 11370. https://doi.org/10.1038/s41598-021-90090-0
Current Setup¶
- Raw volume:
Kirby_2d25um_binary.raw - ROI size:
(300, 300, 300)voxels - Selected ROI origin:
(700, 0, 700) - ROI porosity:
21.47% - Extraction backends:
porespy,prego,native_maximal_ball - Conductance model:
generic_poiseuille - Viscosity model: tabulated water viscosity from
thermo,298.15 K - Boundary pressures:
pout = 5.0 MPa,pin = pout + 10 kPa/m * L
Key Results¶
| Quantity | Value |
|---|---|
| Experimental porosity [%] | 19.95 |
| Full-image porosity [%] | 21.49 |
| ROI porosity [%] | 21.47 |
| Experimental permeability [mD] | 62.0 |

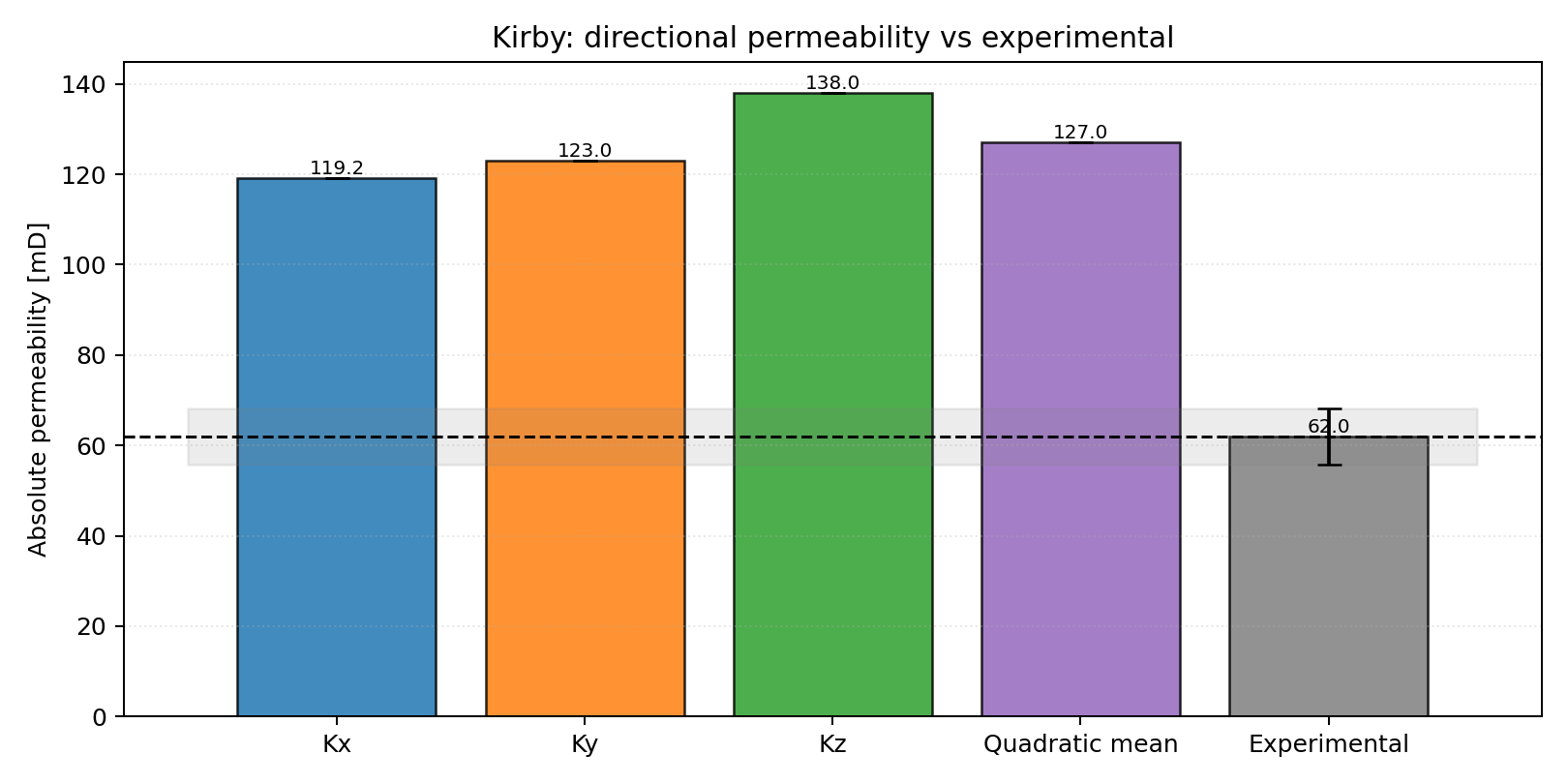

| Backend | Network phi [%] | Kx [mD] | Ky [mD] | Kz [mD] | RMS K [mD] | Rel. K error [%] | Np | Nt |
|---|---|---|---|---|---|---|---|---|
| PoreSpy snow2 | 22.00 | 119.23 | 122.98 | 138.04 | 127.01 | 104.85 | 4261 | 7372 |
| PREGO | 21.30 | 200.48 | 220.60 | 231.52 | 217.91 | 251.48 | 2588 | 5913 |
| Native maximal-ball | 21.30 | 62.41 | 61.79 | 66.87 | 63.73 | 2.79 | 2150 | 3975 |
Network Statistics Snapshot¶
| Backend | Mean coordination | Dead-end pore fraction |
|---|---|---|
| PoreSpy snow2 | 3.46 | 0.271 |
| PREGO | 4.57 | 0.070 |
| Native maximal-ball | 3.70 | 0.181 |
Interpretation¶
For Kirby, the closest aggregate permeability in this rerun is
from Native maximal-ball with a relative permeability error of
2.79%. The spread between the
largest and smallest backend aggregate permeability is about 3.42x,
which makes extraction sensitivity a material part of this sample's validation
result.
This is a pore-network comparison against a laboratory-scale experimental reference. The numbers depend on the selected ROI, segmentation convention, boundary labeling, network reduction, and conductance closure; they should not be read as a direct voxel-scale flow simulation.
